MQS-H Rod brace connector

Hinge MQS-H-12 #2083740

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_MQS_006_o.eps

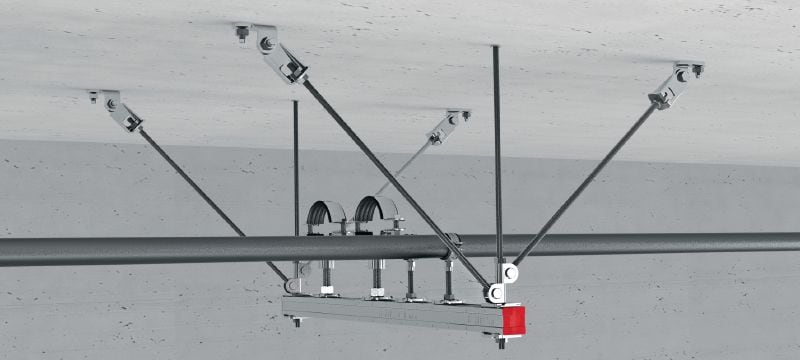

MQS rod/rod Trapeze
LCG001327_v2.tiff
LCG001328_v2.tiff

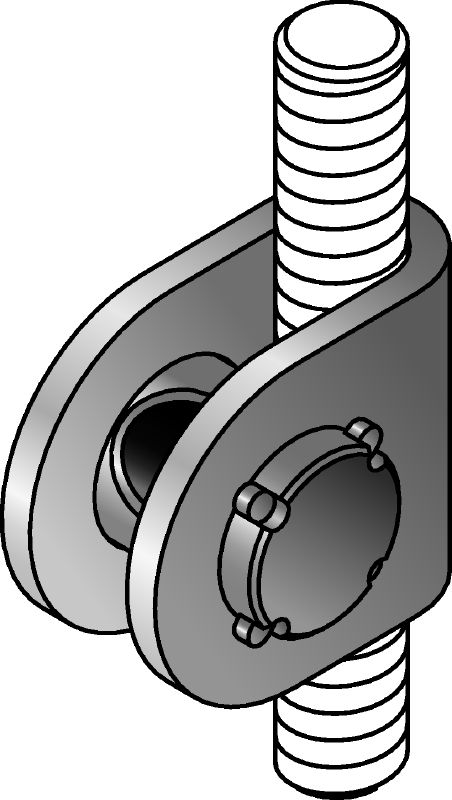

Galvanized pre-assembled threaded rod brace connector with increased angle adjustability to connect 2 threaded rods for a wide range of seismic applications

  • Diameter - D: 12 mm
  • Material composition: Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
  • Surface finish: Indoor Coated - Electro galvanized

Choose options

Diameter - D
  • 12 mm
Pack size
  • 10 pc
 Product options
Quantity
Pack
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
242.00 ILS
24.20 ILS
/
1 each

Technical Data

Diameter - D
12 mm
Material composition
Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
Surface finish
Indoor Coated - Electro galvanized
Material thickness
3 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
81 g
Thread - M
M10

Documents

pdf Operating Instruction MQS H, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 281.5 KB ]

Features & Applications

Features

  • Easy and quick to mount to threaded rods
  • Maximum installation flexibility due to adjustable angle
  • Three versions available to fit the main vertical rod sizes (M8, M10, M12)
  • High load capacity – engineered for optimal transfer of seismic loads

Applications

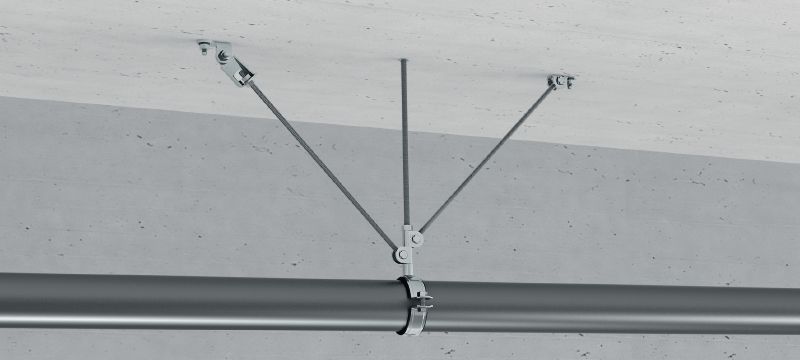

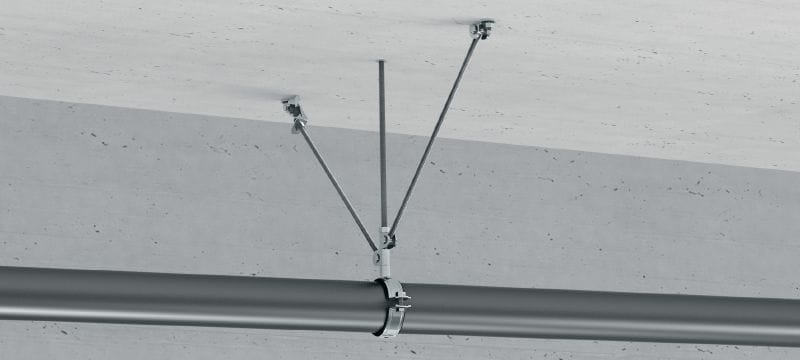

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Assembling seismic bracing using threaded rods in a wide range of seismic applications
