MT-ES-40 FL OC Pre-assembled splice clevis

Channel connector MT-ES-40 FL OC #2399681

Configurator
Technical Data
Documents
Features & Applications
Related Products

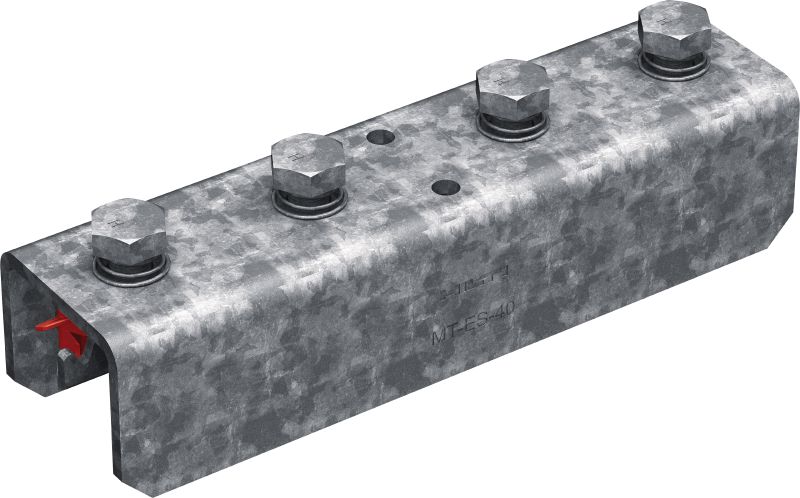

Still life picture of pre-assembled channel connector MT-ES-40 FL OC with Fast-Lock,, outdoor coated
Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Line drawing of the MT-ES-40 FL

Splice connector with pre-assembled Fast-Lock nut and bolt for coupling MT strut channels end-to-end (MT-40, 50, 60, 40D), for outdoor use with low pollution

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 14 pc
 Product options
Quantity
Pack
Total Pieces
14
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1,230.00 ILS
87.86 ILS
/
1 each

Technical Data

Details
Technical illustrations
Material composition
S235JR, Q235B
Material and coating
Carbon steel - outdoor coated
Material thickness
4 mm
Surface finish
Outdoor Coated - HDG
Tightening torque
40 Nm
Weight
1.01 kg

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion

Applications

  • Extending MT strut channels by fastening them together end-to-end
  • Assembling metal framing for MEP support structures when longer spans or increased floor/ceiling clearance are required
  • Suitable for use in moderately corrosive environments
