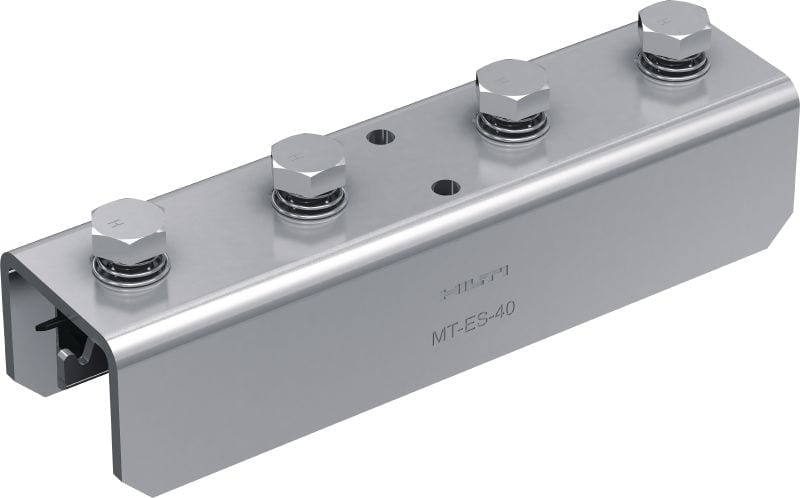

MT-ES-40 FL Pre-assembled splice clevis

Channel connector MT-ES-40 FL #2399669

Splice connector with pre-assembled Fast-Lock nut and bolt for coupling MT strut channels end-to-end (MT-40, 50, 60, 40D)

Pack size

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,017.00 ILS

72.64 ILS / 1 each

Material composition

S235JR, Q235B

Material and coating

Carbon steel - indoor coated

Material thickness

4 mm

Surface finish

Indoor Coated - Electro galvanized

Tightening torque

30 Nm

Weight

1.07 kg

Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Extensive software support – PROFIS Modular Support Engineering, BIMCAD content and Revit® families are all available to streamline design and ordering

Extending MT strut channels by fastening them together end-to-end

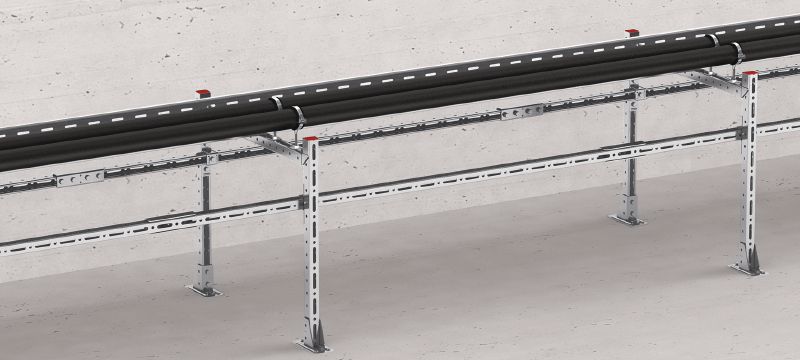

Assembling metal framing for MEP support structures when longer spans or increased floor/ceiling clearance are required
Suitable for use in dry, indoor environments
