MT-S-H1 FL Pre-assembled seismic brace base

Configurator
Technical Data
Documents
Features & Applications
Related Products
Still life picture of pre-assembled seismic hinge MT-S-H1 FL M12 with Fast-Lock

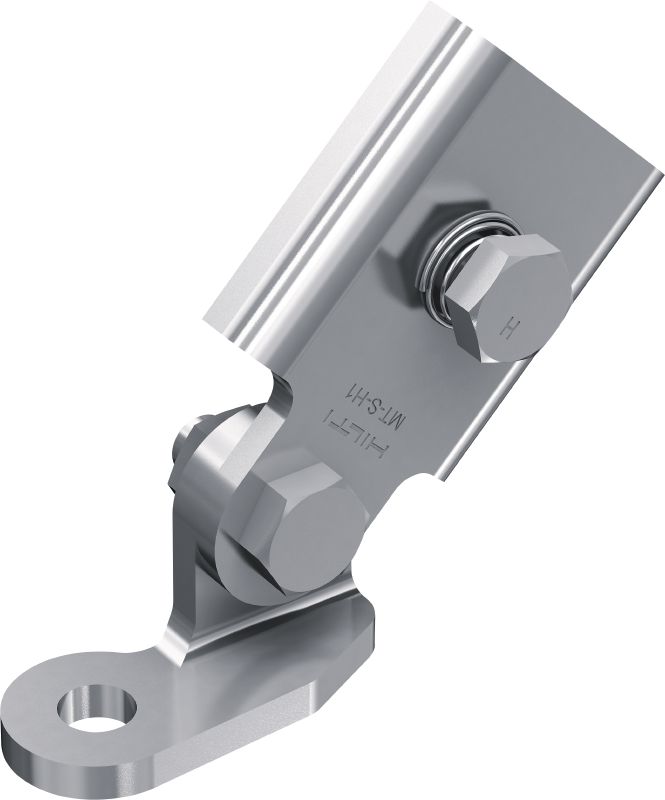

Still life picture of pre-assembled seismic hinge MT-S-H1 FL M10 with Fast-Lock, outdoor coated
Cropped application image of pre-assembled seismic angle connector with Fast-Lock
Line drawing of the MT-S-H1 FL

One-hole hinged connector with pre-assembled Fast-Lock nut and bolt for assembling seismic bracing of MT strut channel framing

  • Material composition: Q355B, Bolt: grade 8.8, Nut: grade 8
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 5 mm, 6 mm

Choose options

Pack size
  • 14 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 486.00 ILS

Technical Data

Details
Technical illustrations
Material composition
Q355B, Bolt: grade 8.8, Nut: grade 8
Material and coating
Carbon steel - indoor coated
Material thickness
5 mm, 6 mm
Surface finish
Indoor Coated - Electro galvanized
Tightening torque
30 Nm

Documents

Brochure
Certificate
Operating Instruction
pdf MT Systems Brochure W4569 [ 1.6 MB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Easy to install – pivoting joint simplifies assembly and fastening
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Seismic bracing of strut channel framing
  • Anchoring strut channel brace members to concrete for use as seismic bracing
  • Connecting strut channel brace members to MT-S-L seismic angle brackets for use as seismic bracing
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
