MT-C-LL2 FL OC Pre-assembled angle connector

Channel connector MT-C-LL2 FL OC #2399676

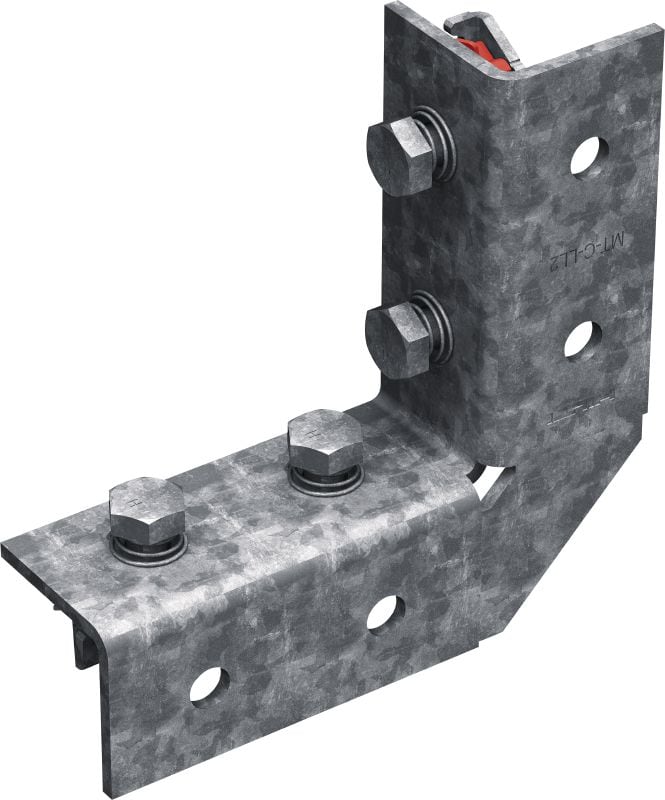

Still life picture of pre-assembled channel connector MT-C-LL2 FL OC with Fast-Lock, outdoor coated

Cropped application image of pre-assembled baseplate with Fast-Lock, outdoor coated

Right-angle, elongated connector with pre-assembled Fast-Lock nut and bolt for assembling strut channel structures, for outdoor use with low pollution

Material composition: S235JR, Q235B
Material and coating: Carbon steel - outdoor coated
Material thickness: 4 mm

Choose options

Pack size

16 pc

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,266.00 ILS

79.13 ILS / 1 each

Technical Data

Material composition

S235JR, Q235B

Material and coating

Carbon steel - outdoor coated

Material thickness

4 mm

Surface finish

Outdoor Coated - HDG

Tightening torque

40 Nm

Weight

0.85 kg

Documents

Features & Applications

Features

Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
