MT-B-O2 FL OC Pre-assembled baseplate

Baseplate MT-B-O2 FL OC #2399675

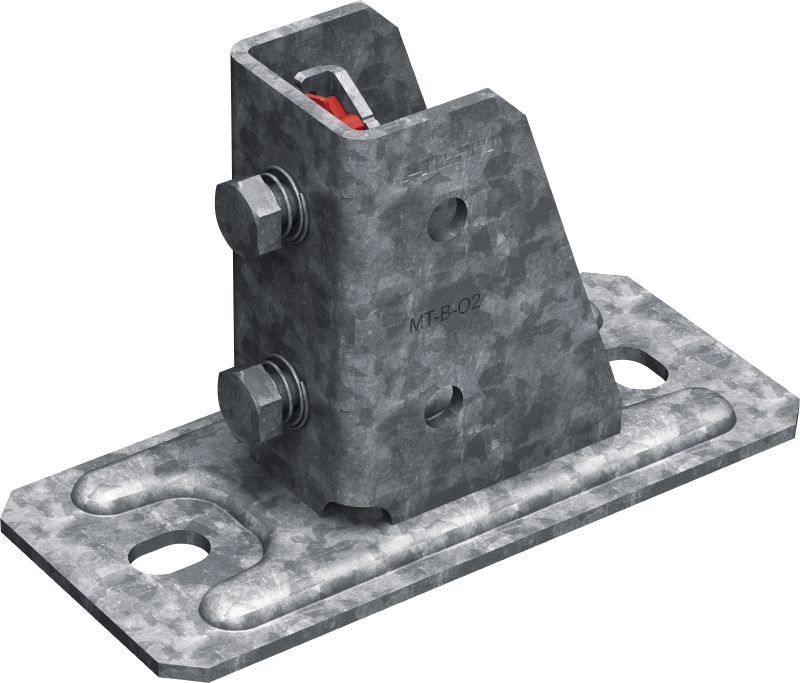

Still life picture of pre-assembled baseplate MT-B-O2 FL OC with Fast-Lock, outdoor coated

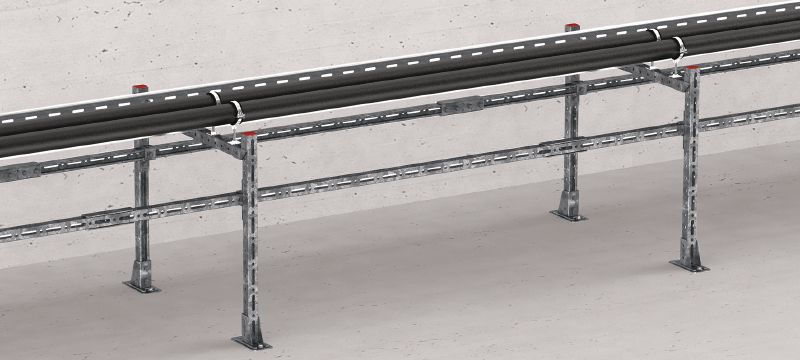

Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated

Base connector with pre-assembled Fast-Lock nut and bolt for anchoring strut channel structures to concrete and steel, for outdoor use with low pollution

Material composition: S235JR, Q235B
Material and coating: Carbon steel - outdoor coated
Material thickness: 4 mm

Choose options

Pack size

16 pc

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,768.00 ILS

110.50 ILS / 1 each

Technical Data

Material composition

S235JR, Q235B

Material and coating

Carbon steel - outdoor coated

Material thickness

4 mm

Surface finish

Outdoor Coated - HDG

Thread connection - M

M12, 1/2 in

Tightening torque

40 Nm

Weight

1.16 kg

Documents

Features & Applications

Features

Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

Fastening MT strut channel to concrete floors, walls or ceilings
Fastening MT strut channel to structural steel
Anchoring metal framing and MEP support structures with medium loads to a base material
Suitable for use in moderately corrosive environments
