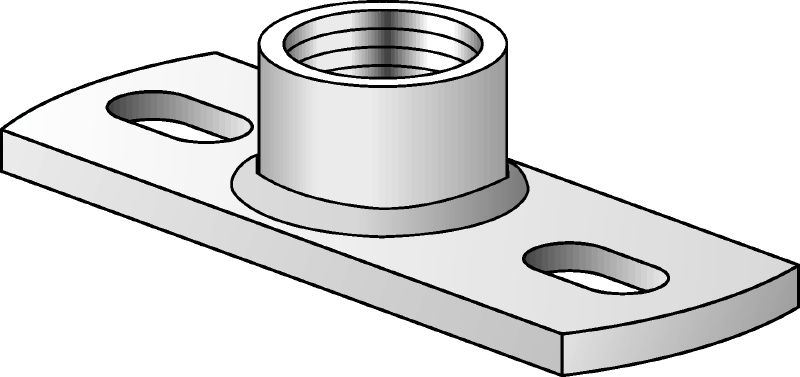

MGM 2 Fixed point base plate

Configurator
Technical Data
Features & Applications
Related Products
MGM-2 (imperial)
MGM-2 (imperial),

Premium galvanized 2-hole base plate for light-duty fixed point applications (imperial)

  • Material composition: DD11 - DIN EN 10111
  • Surface finish: Indoor Coated - Electro galvanized
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Thread connection - M
  • 3/4 in
  • 1 in
Height - H
  • 21 mm
  • 25 mm
Maximum tensile load - F
  • 8 kN
  • 8.5 kN
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 335.00 ILS

Technical Data

Details
Technical illustrations
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
2

Features & Applications

Features

  • Solid base plate for high load transfer
  • Increased load capacity due to all-around welded connection head
  • Load classes and capacities matched to Hilti pipe clamps

Applications

  • Installing light fixed points for pipes subject to thermal elongation and contraction
  • Heavy-duty base plate for single point fastening of pipes

For approval or certificate information, please see individual items.
