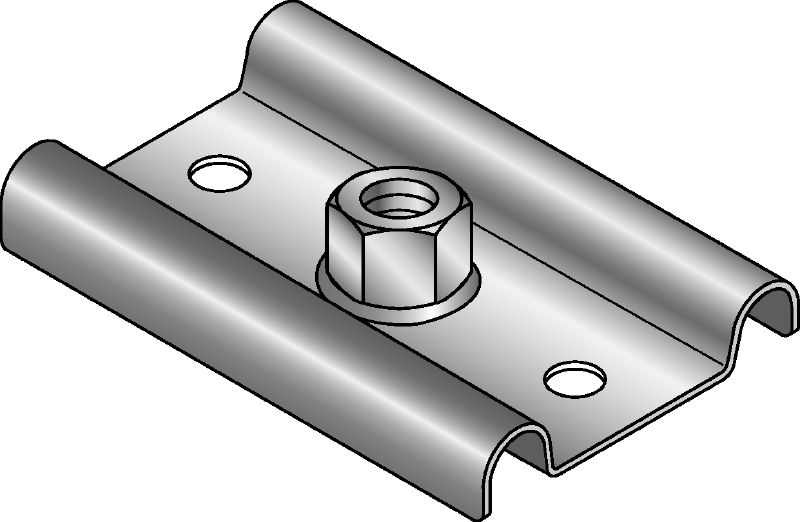

MFP-GP Fixed point base plate
Premium galvanized base plate for light-duty fixed point applications (metric)
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanized
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- M16
Height - H
- 16 mm
Maximum tensile load - F
- 12.5 kN
Pack size
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 3,931.00 ILS
Technical Data
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
2
Features & Applications
Features
- Specially designed baseplate shape to transfer high loads
- Increased load capacity due to all-around welded connection head
Applications
- Installing light fixed points for pipes subject to thermal elongation and contraction
- Heavy-duty base plate for single point fastening of pipes
For approval or certificate information, please see individual items.
