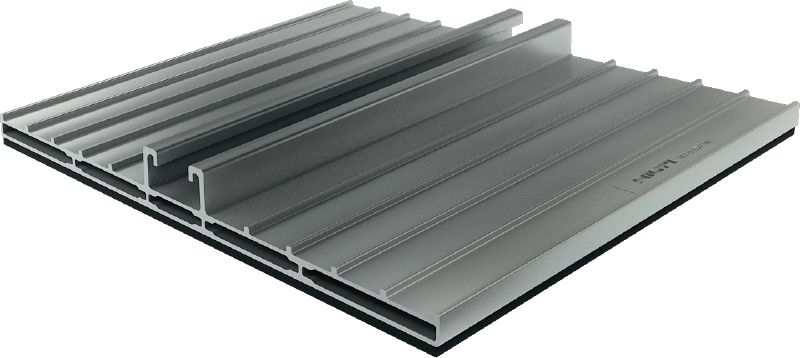

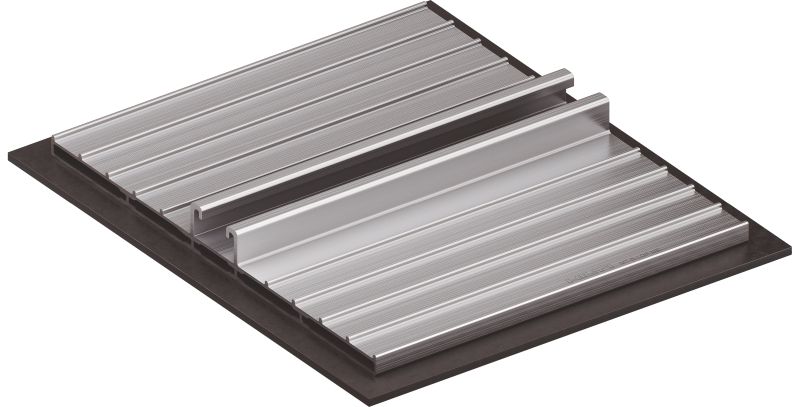

MT-B-LDP ME Load distribution plate
Medium load distribution plate for installing ventilation ducts and ventilation equipment on flat roofs
- Material composition: Aluminium, EPDM rubber, Recycled Rubber blend SBR-PU-EPDM
- Surface finish: n/a
- Material thickness: 2.75 mm
Choose options
Pack size
- 4 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Material composition
Aluminium, EPDM rubber, Recycled Rubber blend SBR-PU-EPDM
Surface finish
n/a
Material thickness
2.75 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for rooftop ventilation and other modular support systems
- Easy to install – compatible with the Hilti MT Twist-Lock, MQN-C Push-button, MQM and MRM Channel Nut, a faster alternative to spring nuts for assembling a modular support system
- Easier to handle and transport compared to pre-fabricated welded steel
- Includes a rubber inlay – made from UV-resistant and recycled rubber to help protect the roof membrane
- Suitable for outdoor applications, with features such as aluminum feet for better weather resistance
Applications
- Installing ventilation equipment, ducts, pipework, cable trays on flat roofs
- Suitable for use in outdoor environments
For approval or certificate information, please see individual items.
Related Products
Medium-duty C-Channel profile for use with MT-FL/MT-TL components in outdoor environments
Nut for attaching media to MT strut channels, for outdoor use with low pollution
Angle connector for assembling strut channels structure or channel with Load Distribution Plate, for outdoor use with low pollution
