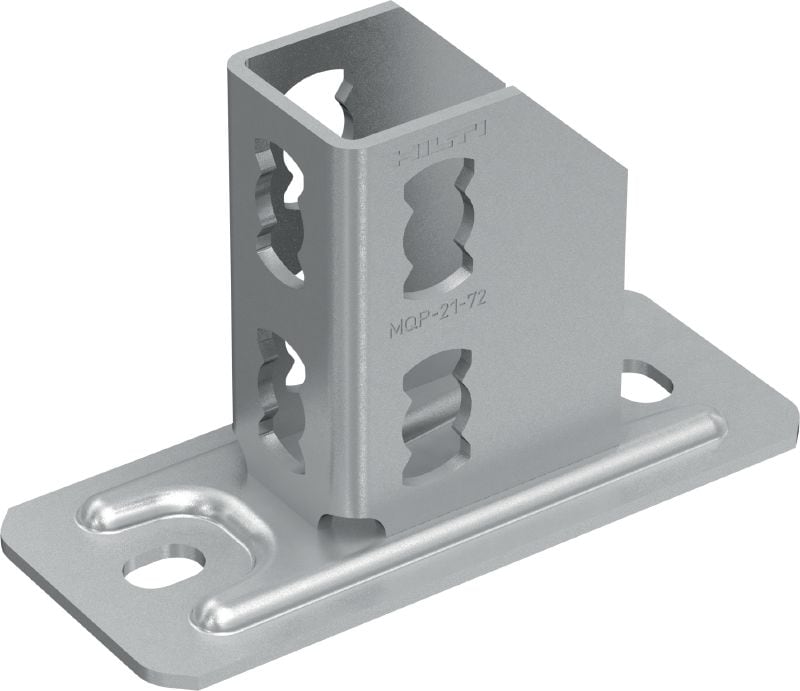

MQP-21-72 Channel foot

בסיס לתעלה MQP-21-72 #369651

Galvanized channel foot for fastening MQ channels to concrete

Approvals: ETA
Material composition: S235JR - DIN EN 10025
Surface finish: Indoor Coated - Electro galvanized

Choose options

For use with

MQ-21D, MQ-41, MQ-41/3, MQ-41D, MQ-52, MQ-72

Pack size

12 pc

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,377.00 ILS

114.75 ILS / 1 each

Technical Data

Approvals

ETA

Material composition

S235JR - DIN EN 10025

Surface finish

Indoor Coated - Electro galvanized

Material thickness

Channel connector: 4 mm, baseplate: 4 mm

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Weight

1231 g

Documents

Features & Applications

Features

Flexibility – complete many different applications using few parts
Compatible with push button channel connectors – for much faster, adaptable assembly
Acoustic insulation – when used with the MVI-P insulation plate for MQP-21-72 rail supports

Applications

Connecting strut channels to concrete and steel
Recommended for use in dry, interior environments
