MVA-ZC ventilation support

Air duct bracket MVA-ZC #386531

Configurator
Technical Data
Documents
Features & Applications
Related Products

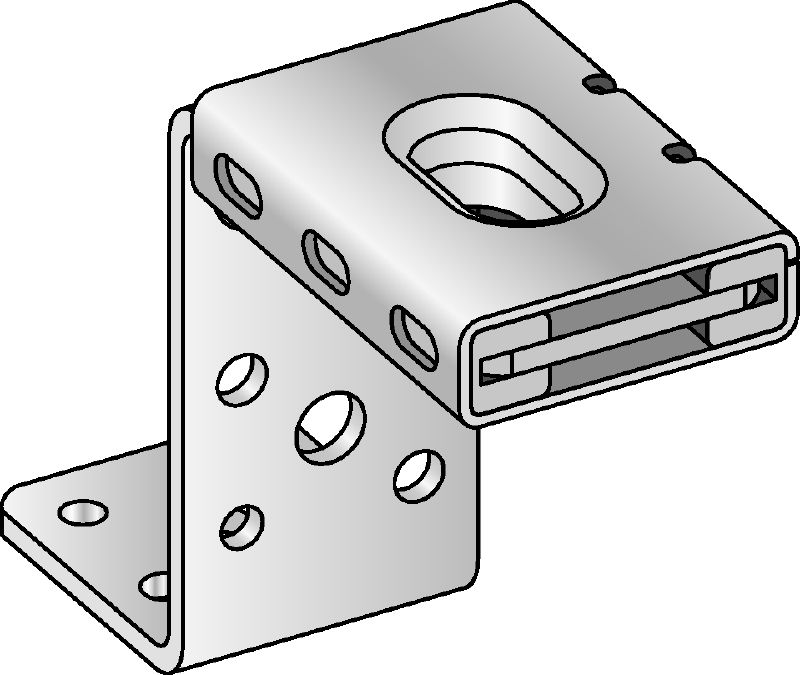

MVA-ZC
30333.tif

Galvanized air duct bracket for fastening medium ventilation ducts overhead

  • Thread connection - M: M8, M10
  • Noise reduction: 12 dB (A)
  • For use with: Threaded rod: M8/M10

Choose options

Thread connection - M
  • M8, M10
For use with
  • Threaded rod: M8/M10
Maximum load - F
  • 600 N
Pack size
  • 25 pc
 Product options
Quantity
Pack
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
334.00 ILS
13.36 ILS / 1 each

Technical Data

Thread connection - M
M8, M10
Noise reduction
12 dB (A)
For use with
Threaded rod: M8/M10
Maximum load - F
600 N
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness Insulation Material
40° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

pdf Operating Instruction MVA-ZC/-ZP, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 376.5 KB ]

Features & Applications

Features

  • Convenient solution for fastening ventilation ducts directly to ceilings, suspending from threaded rods or in conjunction with the MQ strut system for rising ducts
  • Scale for precise alignment and stand-off installation
  • Movable cage – compensates for structural tolerances and allows repositioning to help avoid drilling into rebar
  • 30 mm space between the threaded rod and the duct – for easier subsequent addition of insulation
  • Can be fastened to MQ installation channels or directly to the base material

Applications

  • Fastening rectangular air ducts to ceilings
