MVA-S ventilation support

חיבור לתעלת מיזוג עגולה MVA-S #386544

Configurator
Technical Data
Documents
Features & Applications
Related Products
MVA-S
13809.tif

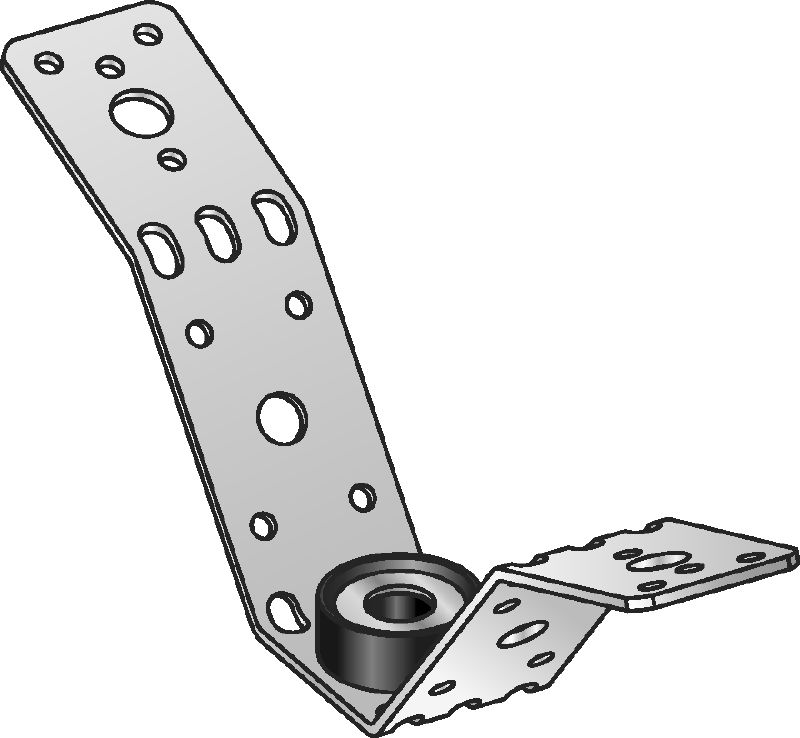

Galvanized air duct hangers for fastening round air ducts with sound insulation

  • Approvals: Acoustic insulation DIN 4109 inspected
  • Thread connection - M: M8, M10
  • Noise reduction: 18 dB (A)

Choose options

Thread connection - M
  • M8, M10
For use with
  • Threaded rod: M8/M10
Maximum load - F
  • 600 N
Pack size
  • 20 pc
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
311.00 ILS
15.55 ILS
/
1 each

Technical Data

Approvals
Acoustic insulation DIN 4109 inspected
Thread connection - M
M8, M10
Noise reduction
18 dB (A)
For use with
Threaded rod: M8/M10
Maximum load - F
600 N
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness Insulation Material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

Test Report
Instruction for use
pdf Test Report MVA-L, MVA-S, MVA-MS, MVI-B, English [ 755.5 KB ]

Features & Applications

Features

  • With predetermined bending points – adapts easily to any duct diameter
  • Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods

Applications

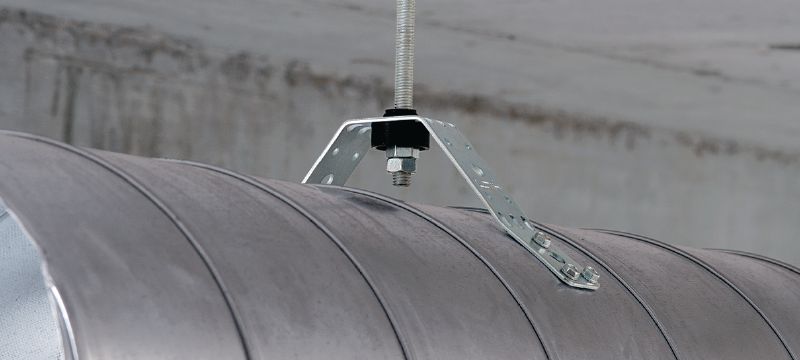

  • Installing round air ducts to the ceiling
