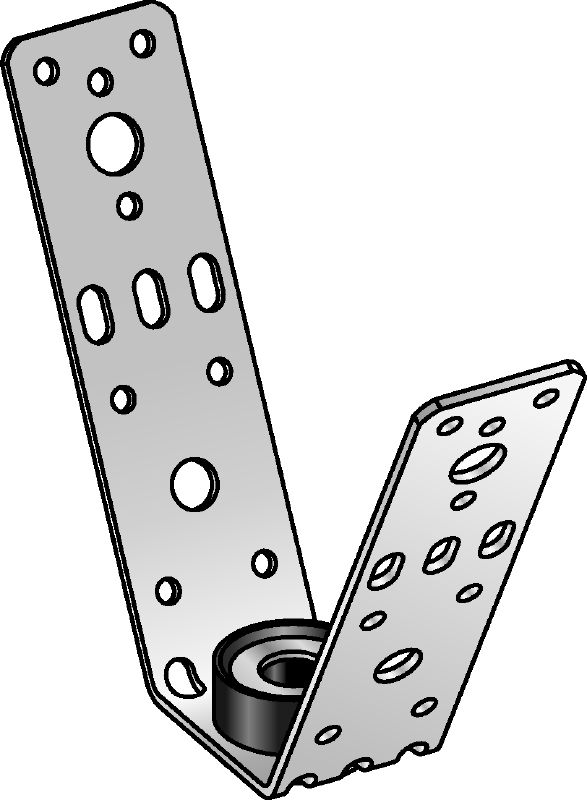

MVA-MS Decking hanger (acoustic)

Decking hanger MVA-MS #386545

Galvanized decking hanger for trapezoid sheet with sound insulation

For use with

Maximum load - F

Pack size

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

326.00 ILS

16.30 ILS / 1 each

Approvals

Acoustic insulation DIN 4109 inspected

Base material type

Trapezoid sheet

Noise reduction

18 dB (A)

For use with

Threaded rod: M8/M10

Maximum load - F

600 N

Material composition

DD11 - DIN EN 10111, EPDM

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Hardness Insulation Material

60° ±5° Shore A

Temperature resistance

-40 - 110 °C

With predetermined bending points – adapts easily to all common metal sheet profiles
Fastening directly to ventilation ducts with acoustic insulation possible
Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
