MVA-Z ventilation support

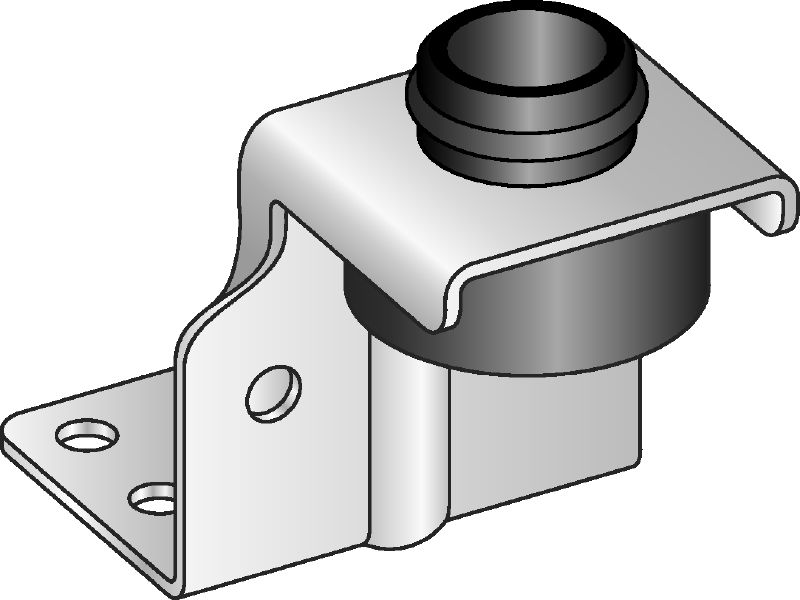

Air duct bracket MVA-Z #386532

Galvanized air duct bracket for fastening light ventilation ducts overhead

Thread connection - M

For use with

Maximum load - F

Pack size

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

560.00 ILS

11.20 ILS / 1 each

Approvals

Acoustic insulation DIN 4109 inspected

Thread connection - M

M8, M10

Noise reduction

18 dB (A)

For use with

Threaded rod: M8/M10

Maximum load - F

500 N

Material composition

DD11 steel - DIN EN 10111, EPDM

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Hardness Insulation Material

60° ±5° Shore A

Temperature resistance

-40 - 110 °C

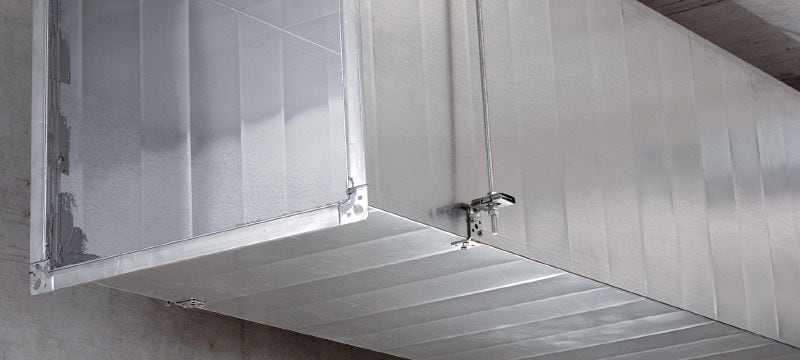

Easy-to-install threaded rod suspension system for ventilation ducts
Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
Height adjustment possible even after installation
Insulation can be installed over the bracket
Hole size/shape suitable for self-drilling screws (4.2) and blind rivets
