MV-SI perforated band hanger

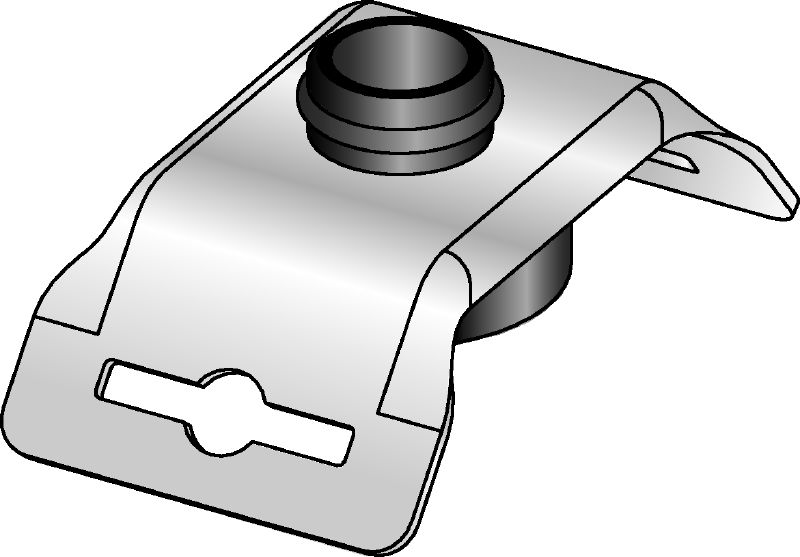

Perforated band hanger MV-SI #386530
Galvanized perforated band hanger for fastening ventilation ducts
- Noise reduction: 18 dB (A)
- For use with: Perforated band: max. bandwidth 20 mm, max. bandthickness 2.5 mm
- Maximum load - F: 600 N
Choose options
For use with
- Perforated band: max. bandwidth 20 mm, max. bandthickness 2.5 mm
Maximum load - F
- 600 N
Maximum tensile load - Fz
- 0.6 kN
Pack size
- 50 pc
Quantity
Pack
Total Pieces
50
Discounted net
268.00 ILS
5.36 ILS / 1 each
Technical Data
Noise reduction
18 dB (A)
For use with
Perforated band: max. bandwidth 20 mm, max. bandthickness 2.5 mm
Maximum load - F
600 N
Maximum tensile load - Fz
0.6 kN
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Pre-galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness Insulation Material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C
Documents
Features & Applications
Features
- Fits all folded spiral-seam tube sizes
- Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
- Height adjustment possible even after installation
- Preassembly helps to prevent lost or dropped parts during installation
Applications

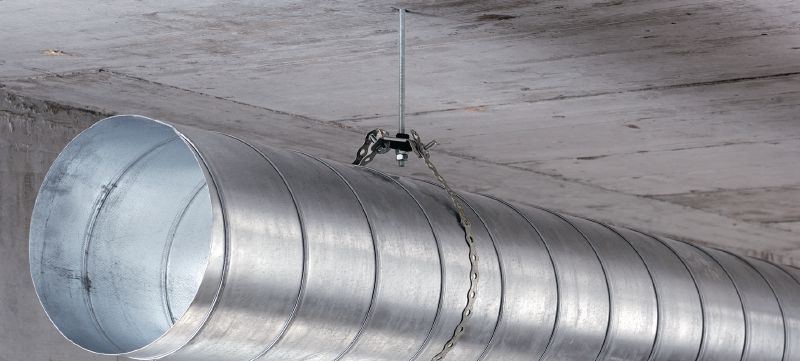

- Installing round air ducts to the ceiling
