MVA-LC ventilation support

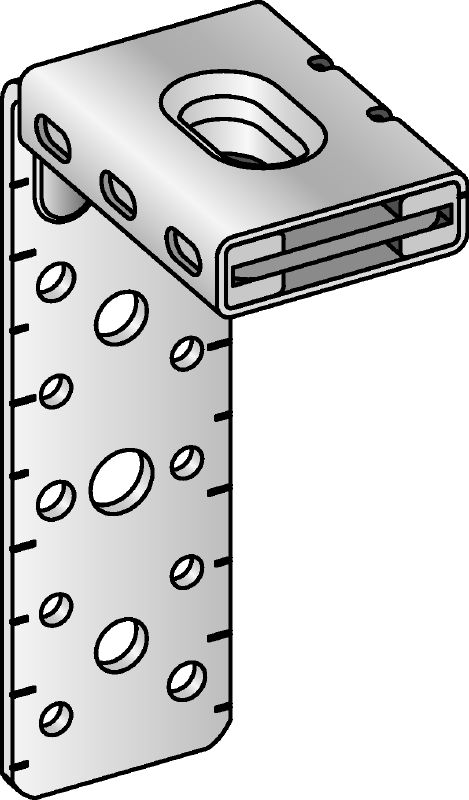

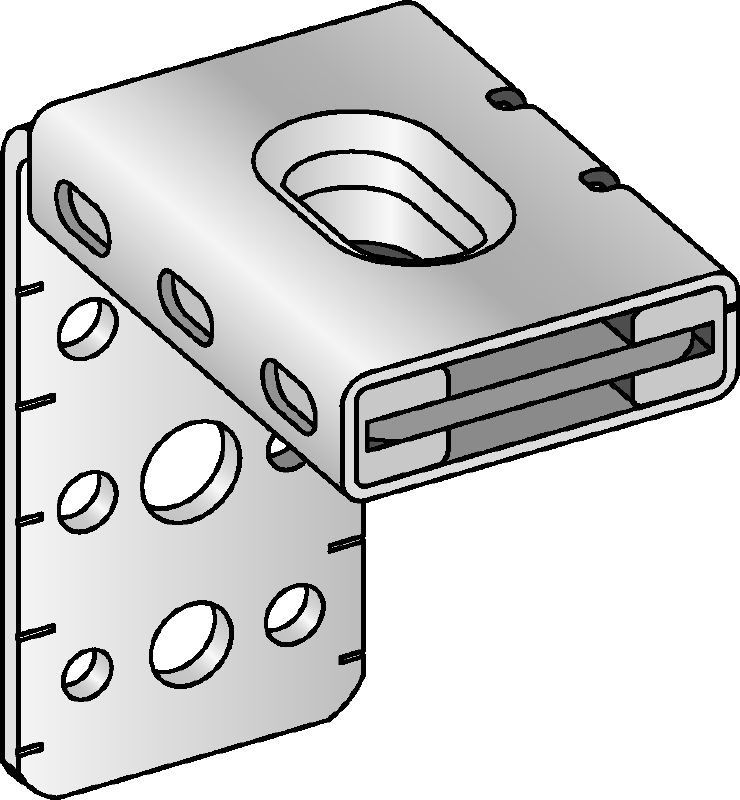

Galvanized air duct bracket for fastening or hanging ventilation ducts

Thread connection - M

For use with

Maximum load - F

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 300.00 ILS

Approvals

Acustic insulaton DIN 4109 inspected

Noise reduction

12 dB (A)

Material composition

DD11 steel - DIN EN 10111, EPDM

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Hardness Insulation Material

40° ±5° Shore A

Temperature resistance

-40 - 110 °C

Convenient solution for fastening ventilation ducts directly to ceilings, suspending from threaded rods or in conjunction with MQ strut channels for rising ducts
Scale for precise alignment and stand-off installation
Movable cage – compensates for structural tolerances and allows repositioning to help avoid drilling into rebar
30 mm space between the threaded rod and the duct – for easier subsequent addition of insulation
Can be fastened to MQ strut channels or directly to the base material
