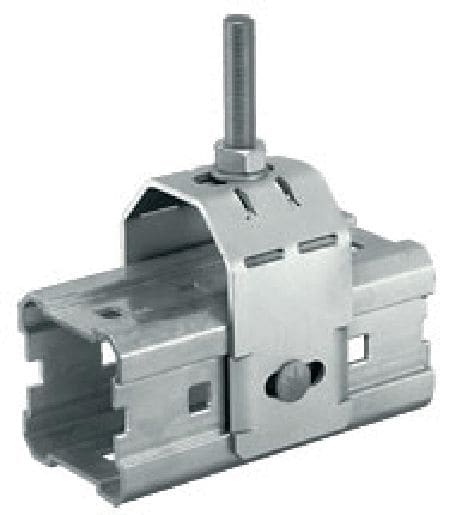

MIC-TRC Connector (double)
Hot-dip galvanized (HDG) connector for fastening M12 (1/2") and M20 (3/4") threaded rods to MI girders
- Material composition: Connector, Square washer: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Connector, Square washer 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Choose options
Thread connection - M
- M12, 1/2 in
- M20, 3/4 in
Modular Girder Type
- 90, 120
Pack size
- 2 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 324.00 ILS
Technical Data
Material composition
Connector, Square washer: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector, Square washer 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
69 Nm
Documents
Features & Applications
Features
- Easy to install
- Opposite side of MI girder can still be used for other applications
- Connector can be used on top or bottom of MI girder
- Height adjustable – 30 mm with MI-90 and 15 mm with MI-120
- MQ strut channel fits between MIC-TRC thread connector and MI girder

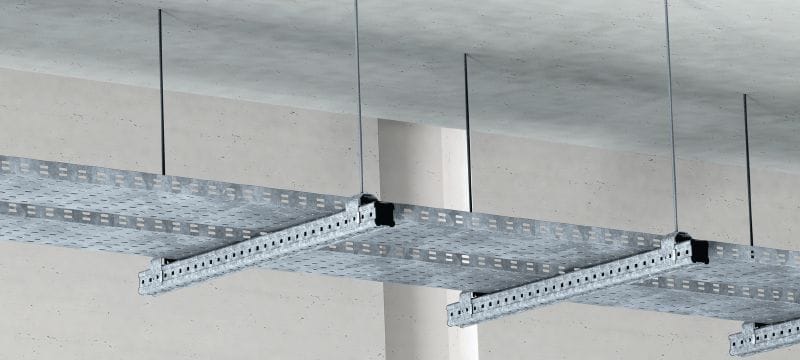

Applications
- MI connector for threaded rods
- MI connector for pipes
For approval or certificate information, please see individual items.
