MVA-L Air duct bracket

Air duct bracket MVA-L #386535

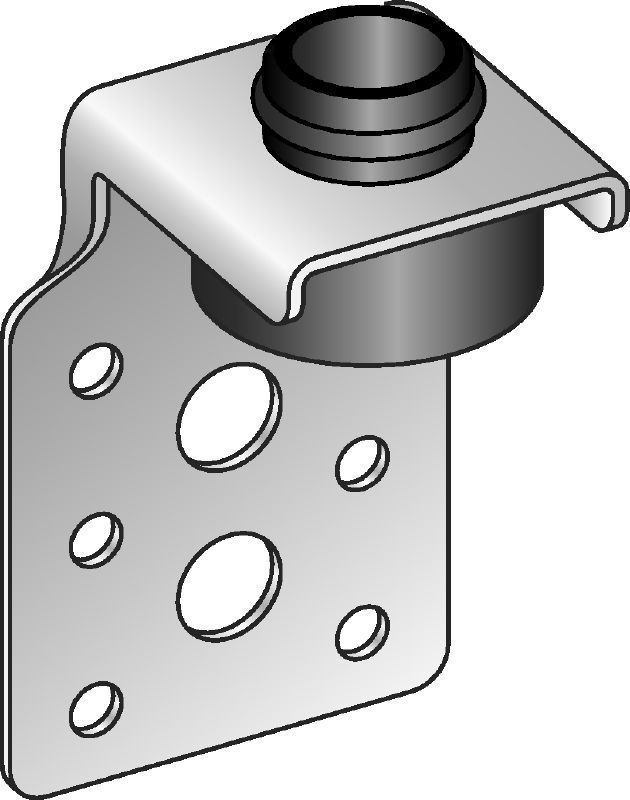

Galvanized air duct bracket for fastening ventilation ducts directly to ceilings

Thread connection - M

For use with

Maximum load - F

Pack size

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

539.00 ILS

10.78 ILS / 1 each

Approvals

Acoustic insulation DIN 4109 inspected

Thread connection - M

M8, M10

Noise reduction

16 dB (A)

For use with

Threaded rod: M8/M10

Maximum load - F

500 N

Material composition

DD11 - DIN EN 10111, EPDM

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Hardness Insulation Material

60° ±5° Shore A

Temperature resistance

-40 - 110 °C

Universal solution for fastening ventilation ducts directly to ceilings
Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
Suitable for fastening in vertical shafts
Insulation can be installed over the bracket
Hole size/shape suitable for fastening to ducts using self-drilling screws (4.2, 4.8, 6.3), blind rivets and metric screws/M8 threaded rods
