MP-KF 170 Refrigeration pipe clamp

Configurator
Technical Data
Documents
Features & Applications
Related Products
MP-KF 170-76, Refrigeration pipe rings
MP-KF
MP-KF 170

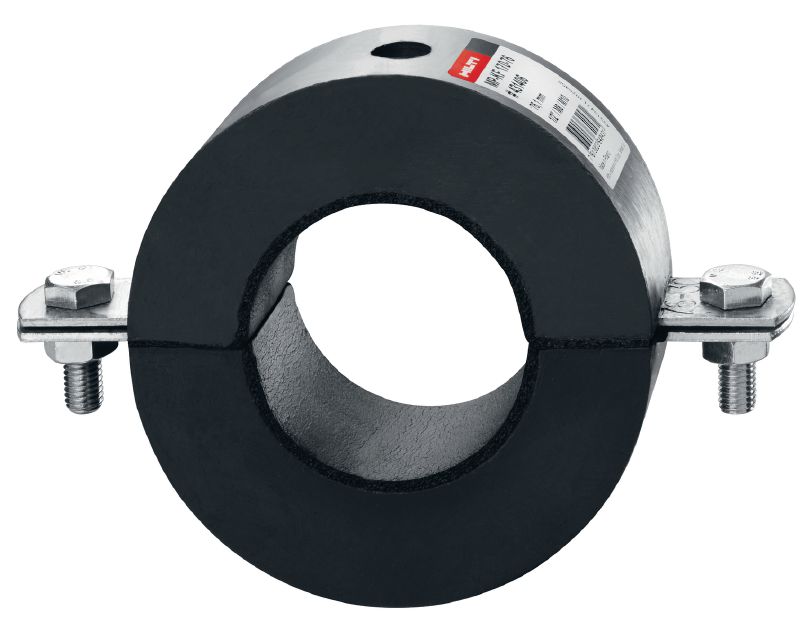

High-density refrigeration pipe clamp for extra heavy-duty refrigeration applications

  • Approvals: Fire class B2
  • Temperature resistance: -50 - 110 °C
  • Material composition: Closed-cell CFC-free polyurethane foam (PUR)
premium

Choose options

Thickness - T
  • 60 mm
Diameter - D
  • 219.1 mm
  • 273 mm
  • 323.9 mm
  • 355.6 mm
  • 406.4 mm
  • 457 mm
  • 508 mm
  • 609 mm
Thread connection - M
  • M16
  • M20
  • M24
Pack size
  • 1 pc
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 925.00 ILS

Technical Data

Approvals
Fire class B2
Temperature resistance
-50 - 110 °C
Material composition
Closed-cell CFC-free polyurethane foam (PUR)
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product Class
Premium
Diffusion Resistance
Vapor retardant due to the closed-cell structure of the rigid PUR foam
Thermal conductivity (λ approx. value)
0.049 W/mK
Compressive strength
2.4 N/mm²
Approx. Density
250 kg/m³
Additional product information
Clamping screws and nuts are not included

Documents

Documentation
Approval document
Sustainability Documentation
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Two-part pipe clamp for quicker installation
  • Integrated metal pipe clamp in the insulation material for optimum load transfer
  • No sealant required – vapor diffusion-tight thanks to sealing tape

Applications

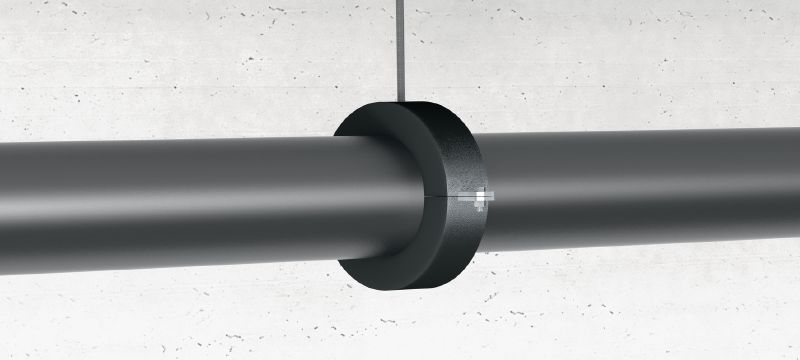

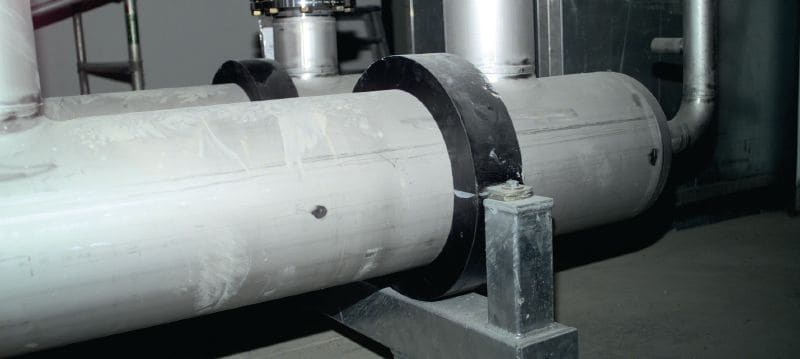

  • Mounting chilled water pipes up to 609 mm diameter in industrial and air conditioning applications
  • The pipe insulation must be connected in a vapor-tight manner in accordance with the specifications of the pipe insulation material manufacturer

For approval or certificate information, please see individual items.
