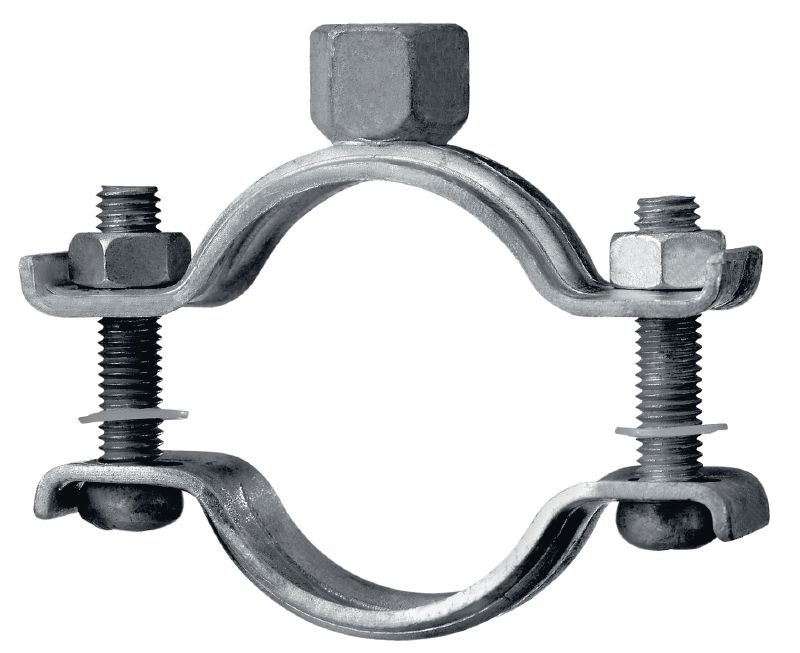

MP-M-F Heavy-duty pipe clamp

Hot-dip galvanized (HDG) pipe clamp without sound insulation for heavy-duty applications

Material composition: S235JR - DIN EN 10025
Surface finish: Outdoor Coated - HDG
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

standard

Choose options

Clamping Range - D

20 - 25 mm
25 - 30 mm
32 - 38 mm
40 - 45 mm
48 - 54 mm
54 - 57 mm
57 - 64 mm
70 - 77 mm
82 - 90 mm

Thread connection - M

Nominal pipe size (imperial)

1/2 in
3/4 in
1 in
1-1/4 in
1-1/2 in
2 in
2-1/2 in
3 in

Pack size

10 pc
25 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 71.30 ILS

Technical Data

Material composition

S235JR - DIN EN 10025

Surface finish

Outdoor Coated - HDG

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Product Class

Standard

Documents

Features & Applications

Features

Closure screws secured to help prevent loss
Solid welded-on connection head
Profiled clamp band for higher rigidity
High resistance to corrosion

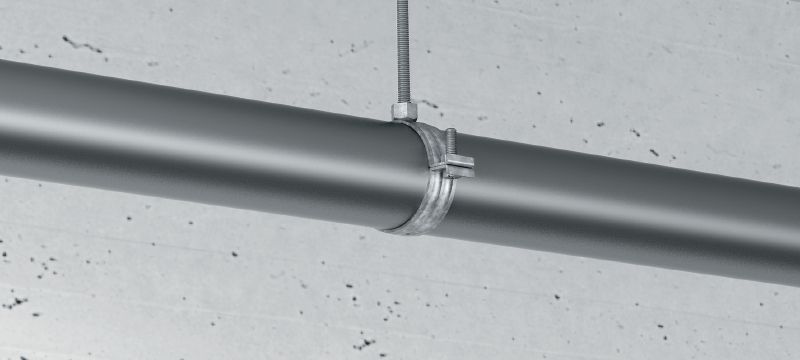

Applications

Heavy-duty pipe installations up to 3"
Installing industrial pipes
Mounting process and control lines

For approval or certificate information, please see individual items.
