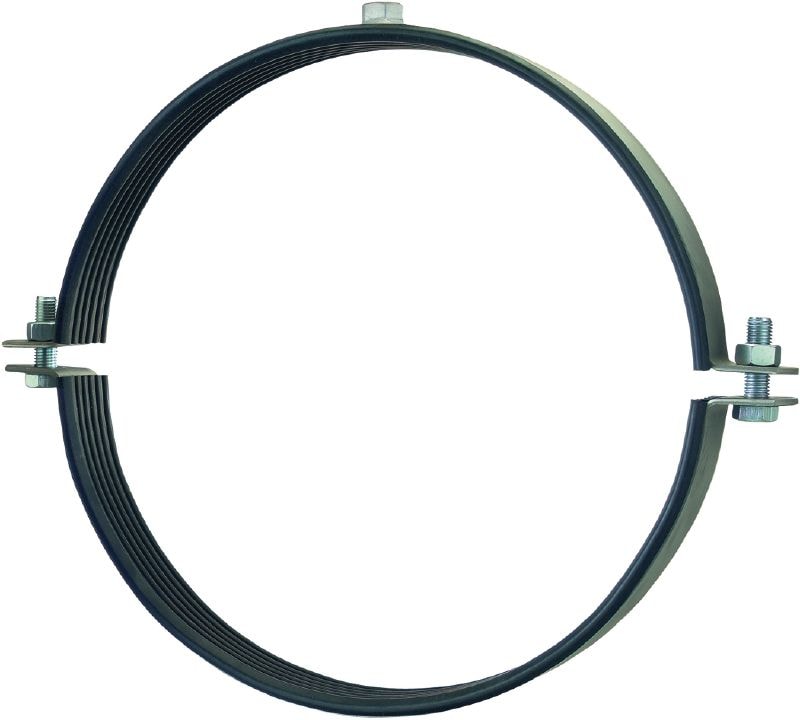

MP-MRXI Heavy-duty pipe clamp
Stainless steel (A4) pipe clamp with sound insulation for extra heavy-duty applications
- Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
- Noise reduction: 16 dB (A)
- Temperature resistance: -50 - 120 °C
premium
Choose options
Clamping Range - D
- 244 - 253 mm
- 267 - 274 mm
- 275 - 282 mm
- 314 - 324 mm
- 324 - 330 mm
- 348 - 356 mm
- 400 - 409 mm
- 454 - 462 mm
- 500 - 508 mm
Thread connection - M
- M16
Pack size
- 1 pc
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 1,184.00 ILS
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness Insulation Material
50° ±5° Shore A
Product Class
Premium
Documents
Features & Applications
Features
- Solid connection head, welded all around
- Strong clamping screws for high load values
- Non-slip, pre-fitted profiled rubber inlay
- Suitable for installing pipes under dynamic loading if used with vibration-damping components
- High resistance to corrosion (A4 stainless steel)
Applications
- Heavy-duty pipe installations up to 508 mm
- Installing industrial pipes
- Mounting pipes in food industry (except production) and in water treatment
- Heavy-duty plumbing and heating applications
For approval or certificate information, please see individual items.
