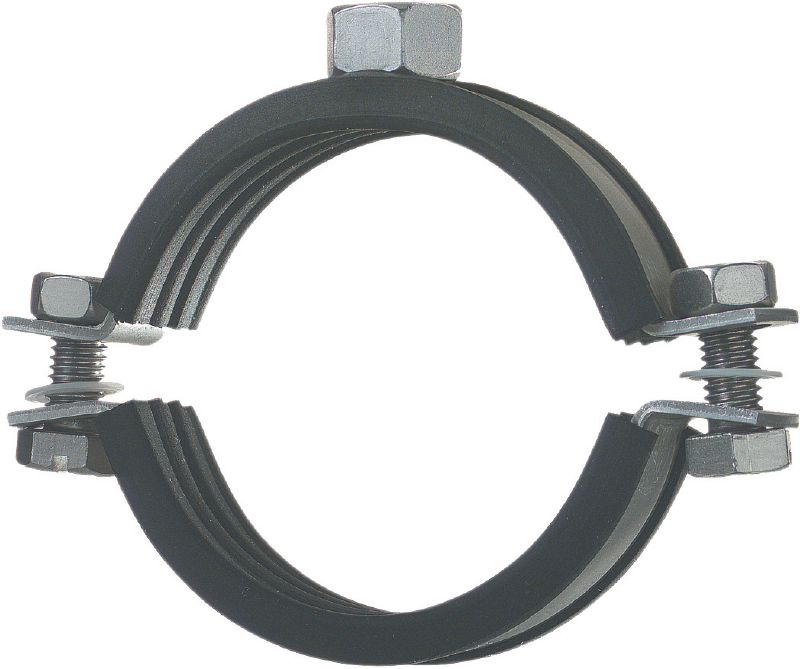

MP-SRNI Light-duty pipe clamp

Stainless steel (A4) pipe clamp with sound insulation for light-duty applications

Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction: 15 dB (A)
Temperature resistance: -50 - 120 °C

premium

Choose options

Clamping Range - D

15 - 19 mm
19 - 23 mm
25 - 29 mm
33 - 37 mm
38 - 44 mm
48 - 52 mm
54 - 58 mm
59 - 64 mm

Thread connection - M

Nominal pipe size (imperial)

3/8 in
3/4 in
1 in
1-1/4 in
1-1/2 in
2 in

Pack size

10 pc
25 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 1,011.00 ILS

Technical Data

Approvals

Acustic insulaton DIN 4109 inspected, Fire class B2

Noise reduction

15 dB (A)

Temperature resistance

-50 - 120 °C

Material composition

Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L

Surface finish

Outdoor Plus - Stainless Steel

Environmental conditions

Outdoor high pollution (C4 – high / C5)

Insulation material

EPDM rubber

Hardness Insulation Material

50° ±5° Shore A

Product Class

Premium

Documents

Features & Applications

Features

Higher resistance to corrosion (A4 stainless steel)
Short connection head allows installation close to a wall, floor or ceiling
Pipe ring with verified fire resistance as per DIN 4102, part 2
Closure screw secured to help prevent loss

Applications

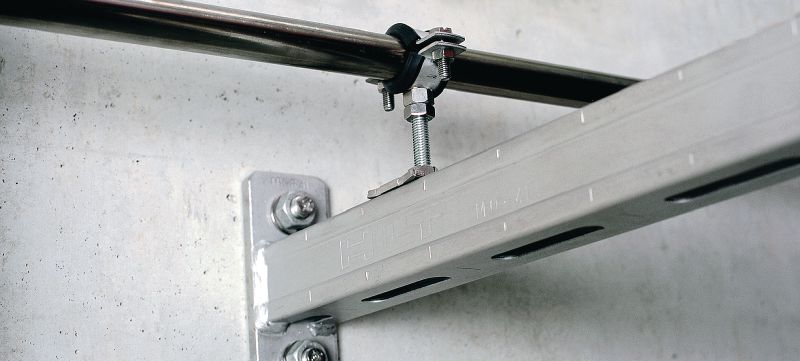

Light-duty pipe installations up to 2" (or 64mm)
Heating, plumbing and industry applications in corrosive environments
Mounting pipes in food industry (except production) and in water treatment

For approval or certificate information, please see individual items.
