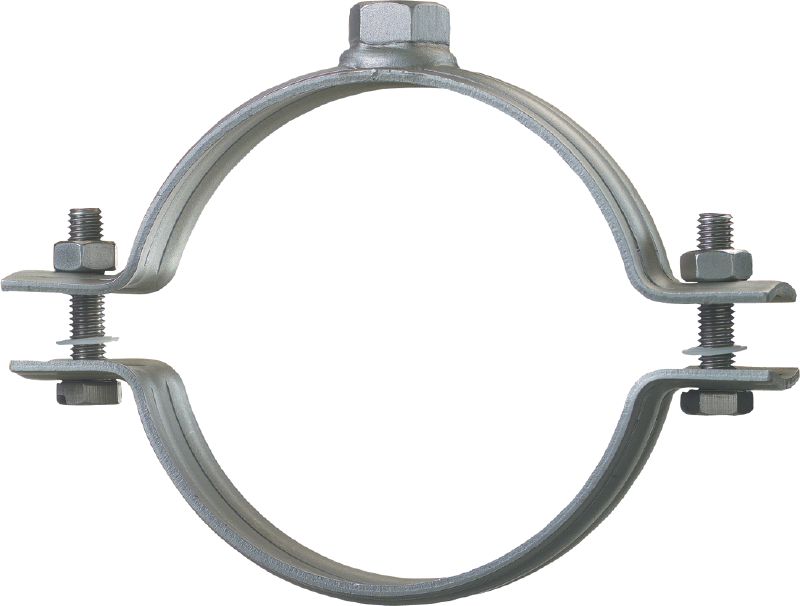

Stainless steel (A4) pipe clamp without sound insulation for heavy-duty applications

  • Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel
  • Environmental conditions: Outdoor high pollution (C4 – high / C5)
standard

Choose options

Clamping Range - D
  • 66 - 70 mm
  • 75 - 80 mm
  • 87 - 93 mm
  • 97 - 104 mm
  • 109 - 114 mm
  • 116 - 123 mm
  • 125 - 131 mm
  • 133 - 138 mm
  • 139 - 145 mm
  • 156 - 162 mm
  • 162 - 168 mm
  • 175 - 180 mm
  • 190 - 200 mm
  • 210 - 219 mm
  • 217 - 224 mm
Thread connection - M
  • M10
  • M12
  • M16
Nominal pipe size (imperial)
  • 2-1/2 in
  • 3 in
  • 4 in
  • 5 in
  • 6 in
Pack size
  • 5 pc
  • 10 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 1,504.00 ILS

Technical Data

MP-MR
MP-MR
MP-MR
EB 20M/8
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Product Class
Standard

Documents

Features & Applications

Features

  • Increased rigidity due to profiled clamping band
  • Solid connection head, welded all around
  • Pipe ring with verified fire resistance as per DIN 4102, part 2
  • High resistance to corrosion (A4 stainless steel)

Applications

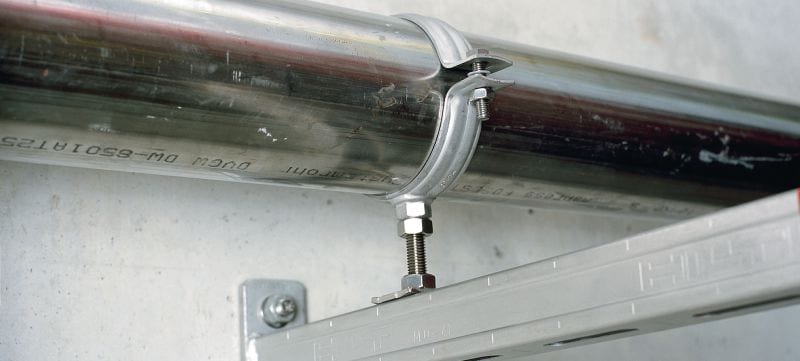

  • Heavy-duty pipe installations up to 224 mm
  • Installing industrial pipes
  • Mounting pipes in food industry and in water treatment
  • Heavy-duty plumbing and heating applications
  • Fastening of heavy-duty pipes in corrosive environments

For approval or certificate information, please see individual items.
