MQ-41 D C-Channel profile

Configurator
Technical Data
Documents
Features & Applications
Related Products
MQ-41 D
14460.eps

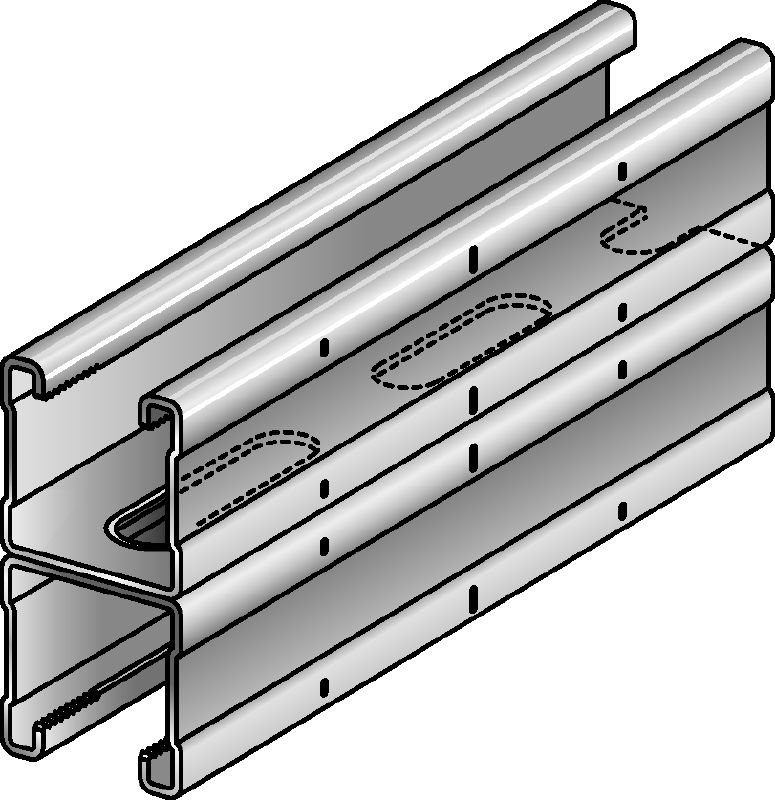

Galvanized double C-Channel profile for medium-duty applications

  • Approvals: ETA
  • Height: 82.6 mm
  • Material thickness: 2 mm

Choose options

Length
  • 3 m
  • 6 m
Pack size
  • 3 m
  • 6 m
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 273.67 ILS

Technical Data

Details
Technical illustrations
Approvals
ETA
Height
82.6 mm
Material thickness
2 mm
Material composition
S250GD+Z275-M-A-C
Surface finish
Indoor Coated - Pre-galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Technical information
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Installation on both sides possible – for high application flexibility
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
