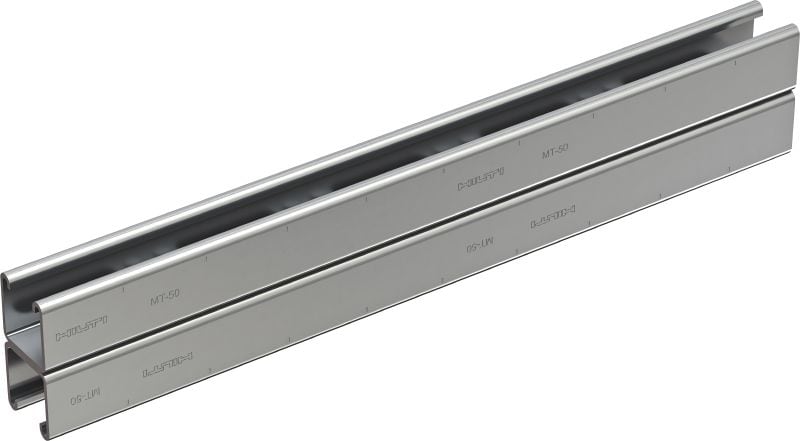

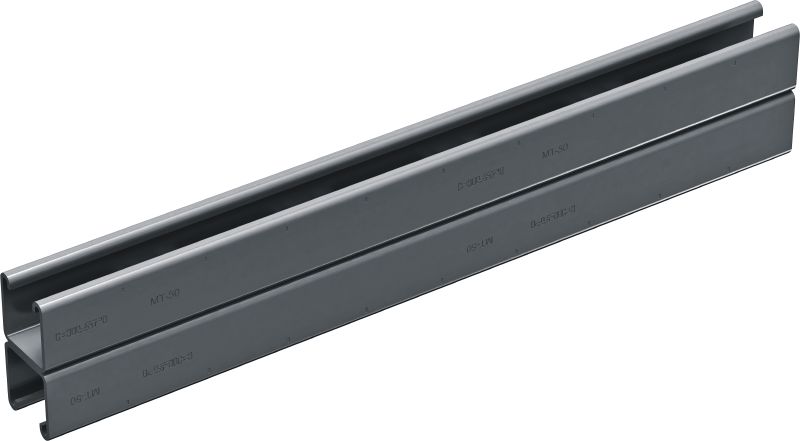

MT-50D U C-Channel profile
Medium-duty unslotted double C-Channel profile for use with MT-FL/MT-TL components in indoor environments
- Material composition: S280GD
- Surface finish: Indoor Coated - Pre-galvanized
- Material thickness: 2.75 mm
Choose options
Pack size
- 6 m
Quantity
Packs
Total Pieces
1
Discounted net
From 188.50 ILS
Technical Data
Material composition
S280GD
Surface finish
Indoor Coated - Pre-galvanized
Material thickness
2.75 mm
Environmental conditions
Indoor
Documents
Features & Applications
Features
- Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
- Airtight strut channels – ideal for building modular frames in data centers, especially hot/cold aisle containment
- Simpler to install – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
- Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
Applications
- Floor-mounted MEP support structures in data centers, such as hot/cold aisle containment
- Suitable for use in dry, indoor environments
For approval or certificate information, please see individual items.
