MT-15 Basic profile

I.-Channel MT-15 #2268493

Configurator
Technical Data
Documents
Features & Applications
Related Products

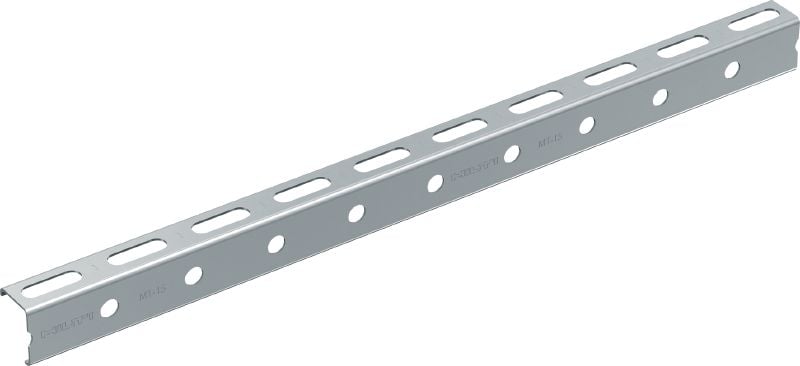

MT Channels, 2268493
MT Channels

Light-duty basic profile for use in indoor environments

  • Material composition: S280 or better steel
  • Surface finish: Indoor Coated - Pre-galvanized
  • Material thickness: 1.5 mm

Choose options

Pack size
  • 2 m
 Product options
Quantity
Packs
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
29.50 ILS
29.50 ILS / 1 m

Technical Data

Details
Technical illustrations
Material composition
S280 or better steel
Surface finish
Indoor Coated - Pre-galvanized
Material thickness
1.5 mm
Weight
1.36 kg
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Documentation
Sustainability Documentation
pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Complexity kept to the minimum – optimizing logistical and on-site operations, as well as providing simplicity in installation
  • Economical solution for simple threaded rod trapeze frames
  • Fully compatible with the MT System – direct mounting on MT girders possible
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

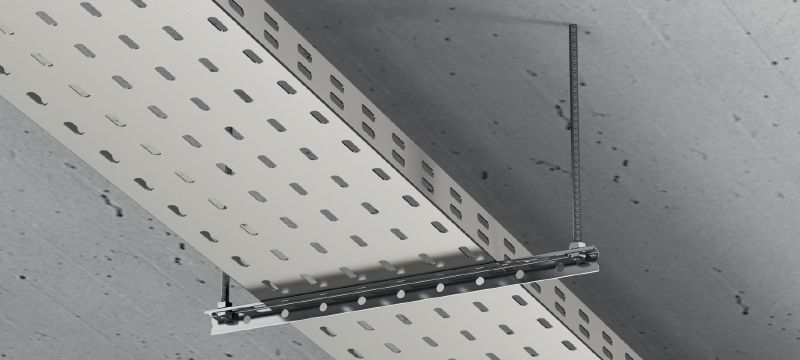

  • Strut trapeze to support pipes, ducts and cable trays in dry, indoor environments
  • Suitable for use in dry, indoor environments
