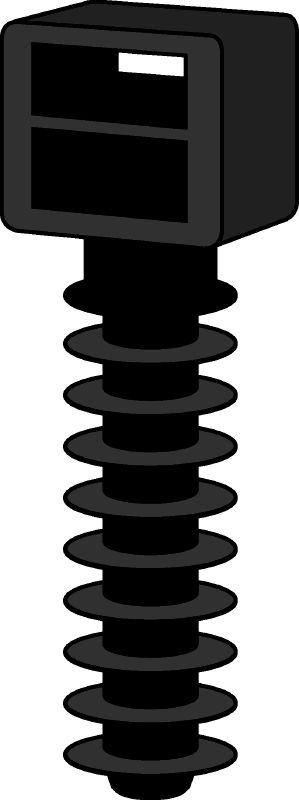

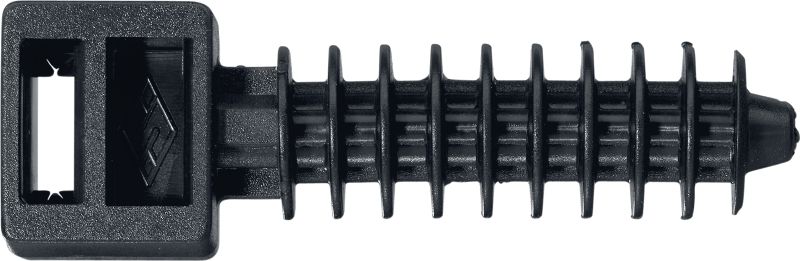

ECT Cable tie anchor
Cable tie anchor (high) for fastening large cable diameters
- Material composition: PA 6.6
- Surface finish: n/a
- Temperature resistance: 10 - 65 °C
Choose options
Diameter - D
- 7.6 mm
- 10.2 mm
- 10.3 mm
Length
- 36 mm
- 42 mm
- 47 mm
Width - B
- 13 mm
- 15 mm
Maximum load - F
- 90 N
- 170 N
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 29.00 ILS
Technical Data
Material composition
PA 6.6
Surface finish
n/a
Temperature resistance
10 - 65 °C
Installation temperature - min
10 °C
For use with
Cable ties max. 9 mm
Additional product information
Optimum conditions at 22° C and 50% rel. humidity
Features & Applications
Features
- Designed to be quicker and easier to install
- Versatile – suitable for use on a wide range of materials including concrete, brick and wood
- Virtually halogen-free and silicone-free
- Conforms to RoHS
Applications
- Fastening cables, pipes and hoses to walls using cable ties
- Fastening cables, pipes and hoses to ceilings using cable ties
For approval or certificate information, please see individual items.
