MQZ-RI Channel rubber inlay

Channel rubber inlays for sound insulation

Technical Data

Approvals

Acustic insulaton DIN 4109 inspected

For use with

MQ channels and M8-M10 threaded rods

Material composition

EPDM

Surface finish

n/a

Temperature resistance

-40 - 110 °C

Noise reduction

18 dB (A)

Resistance

UV light, diluted acids and alkalis, alcohol solutions, water and water-based solutions

Ageing resistance

Tested as per DIN 53508 and 53509

Compressive strength

6 N/mm²

Hardness Insulation Material

45° ±5° Shore A

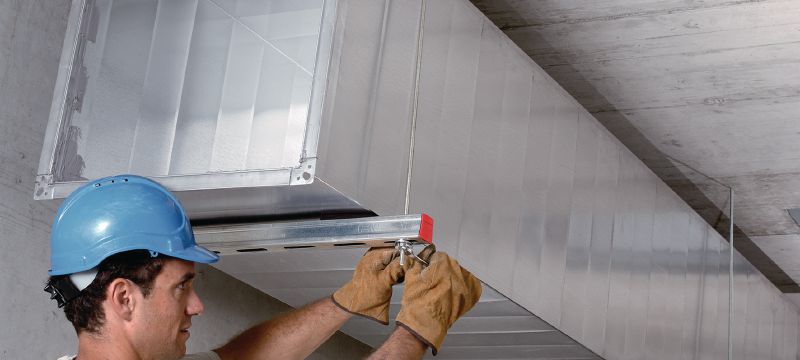

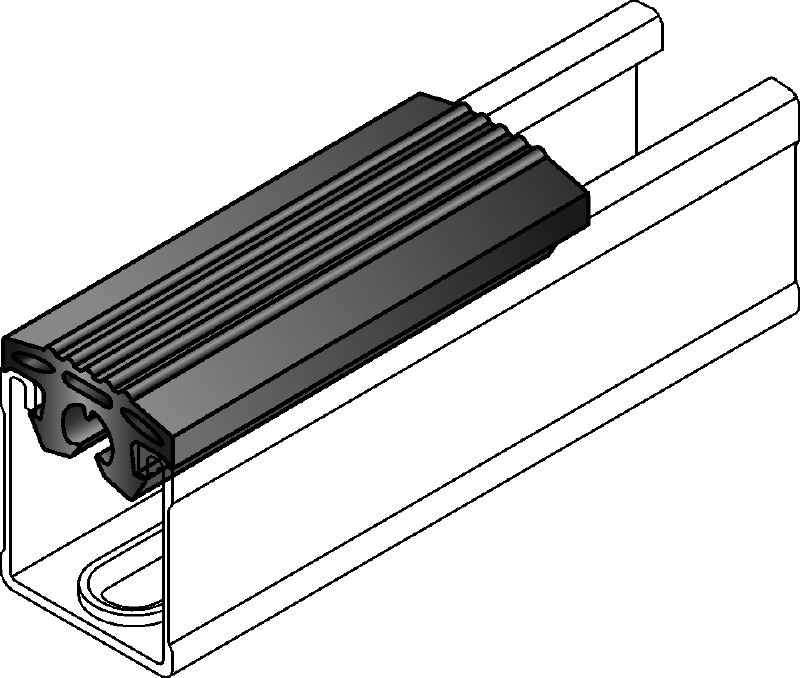

Fitted into channel slots – preventing direct contact between the duct and the channel
Large contact area between insulation profile and duct – reduces the transmission of vibration and sound through the structure
Prevents contact between the threaded rod and the duct thanks to M8/M10 through hole in the insulating profile
