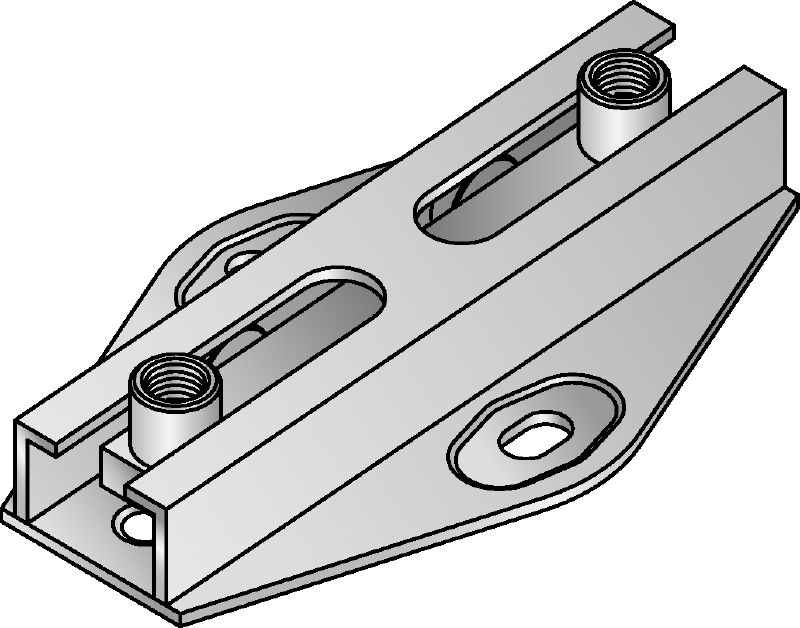

MRG-D6-R Double roll connector

Double roll connector MRG-D6-R #304087

Stainless steel (A4) double roll connector for heavy-duty heating and refrigeration applications

Thread connection - M

Height - H

Maximum load - F

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

3,132.00 ILS

3,132.00 ILS / 1 each

Thread connection - M

M12, M16

Height - H

44 mm

Maximum load - F

6 kN

Material composition

Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L

Surface finish

Outdoor Plus - Stainless Steel

Environmental conditions

Outdoor high pollution (C4 – high / C5)

Temperature resistance

-40 - 300 °C

Base material type

Concrete, Steel, Wood

Max. displacement path

116 mm

Coefficient of sliding friction

0.15

Weight

1.8 kg

Suitable for suspended or standing installation applications
Load classes and capacities matched to Hilti pipe clamps
Stiffened baseplate fits MQ modular support system
Smooth rolling movement on coated runner in both directions in axial pipe direction
High temperature resistance up to 300°C – no plastic parts
