MPSG Swivel slide connector

Configurator
Technical Data
Documents
Features & Applications
Related Products
MPSG
28526.eps

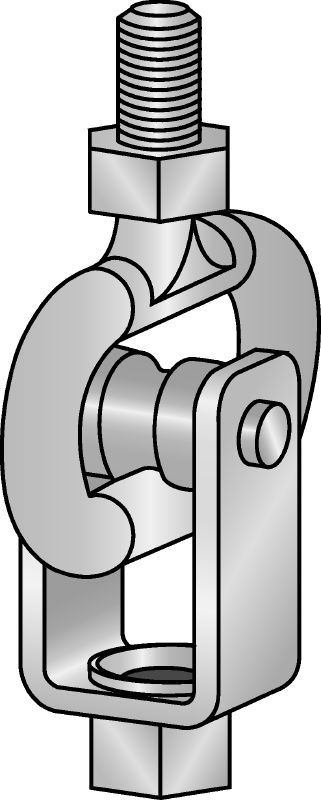

Galvanized swivel slide connector for light-duty heating and refrigeration applications

  • Material composition: DD11 - DIN EN 10111
  • Surface finish: Indoor Coated - Electro galvanized
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Thread connection - M
  • M8
  • M10
Height - H
  • 73 mm
  • 85 mm
Maximum tensile load - F
  • 0.8 kN
  • 1.5 kN
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 1,078.00 ILS

Technical Data

Details
Technical illustrations
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Base material type
Concrete, Steel, Wood

Documents

pdf  EPD_Pipe Fixation (Metal/Polym, English [ 2.1 MB ]

Features & Applications

Features

  • Reduced installation distance from the ceiling
  • Allows a certain fastening displacement when pipes change in length
  • Flexible swivel effect (max. 15 degree deflection)
  • Can be used near elbow installations
  • Height adjustment up to max. 15 mm

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • Flexible and easy single-point fastening of pipes
  • Compatible with multiple modular support systems

For approval or certificate information, please see individual items.
