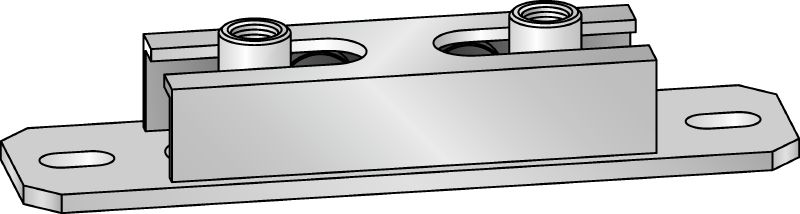

MRG-UK D6 Double cross roll connector

Cross slide connector MRG-UK D6 #336755

Galvanized double cross roll connector for heavy-duty heating and refrigeration applications

Thread connection - M: M12, M16
Height - H: 45 mm
Maximum load - F: 6 kN

Choose options

Thread connection - M

M12, M16

Height - H

45 mm

Maximum load - F

6 kN

Pack size

5 pc

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

2,128.00 ILS

425.60 ILS / 1 each

Technical Data

Thread connection - M

M12, M16

Height - H

45 mm

Maximum load - F

6 kN

Material composition

S235JR - DIN EN 10025

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Temperature resistance

-40 - 300 °C

Additional product information

2x hexagonal bolts M12x35 included in the package

Base material type

Concrete, Steel, Wood

Max. displacement path

46 mm

Coefficient of sliding friction

0.08

Weight

1.46 kg

Documents

Features & Applications

Features

Facilitates horizontal 4-way movement in combination with MRG-D6 double roll connectors
Load classes and capacities matched to Hilti pipe clamps
Suitable for suspended or standing installation applications

Applications

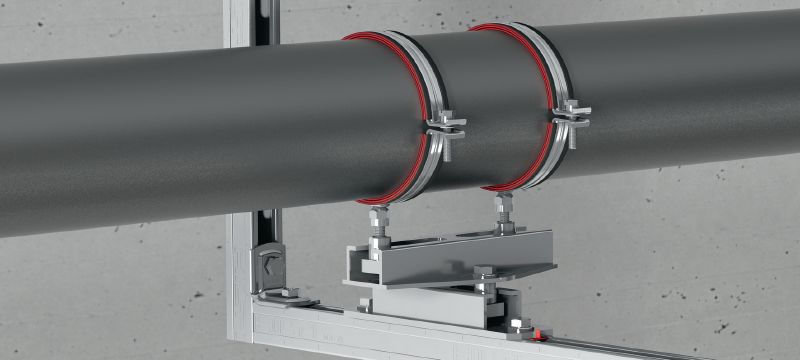

Mounting pipes subject to thermal elongation and contraction
For use in combination with MRG-D6 double roll connector for cross slide applications
Single-point fastening of pipes or in combination with modular support systems
Recommended for use in dry, interior environments
