MSG 1,0 Slide connector

Configurator
Technical Data
Documents
Features & Applications
Related Products

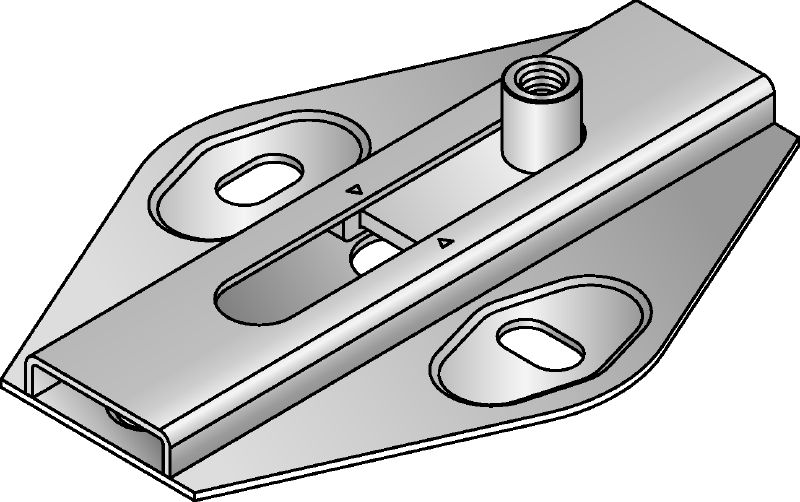

MSG 1,0
MSG_Primary_00248205.eps

Galvanized slide connector for light-duty heating and refrigeration applications

  • Material composition: S235JRG - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanized
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Thread connection - M
  • 1/2 in
  • M12, M16
Height - H
  • 32 mm
  • 35 mm
Maximum load - F
  • 1 kN
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 1,305.00 ILS

Technical Data

Details
Technical illustrations
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 130 °C
Base material type
Concrete, Steel, Wood

Documents

Sustainability Documentation
Operating Instruction
pdf  EPD_Pipe Fixation w.Polymer_EN, English [ 1.8 MB ]

Features & Applications

Features

  • Can be used for suspended or standing installation applications
  • Load classes and capacities matched to Hilti pipe clamps
  • Stiffened baseplate fits MQ modular support system
  • Smooth sliding movement on integrated plastic guide

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • Single-point fastening of pipes or in combination with modular support systems

For approval or certificate information, please see individual items.
