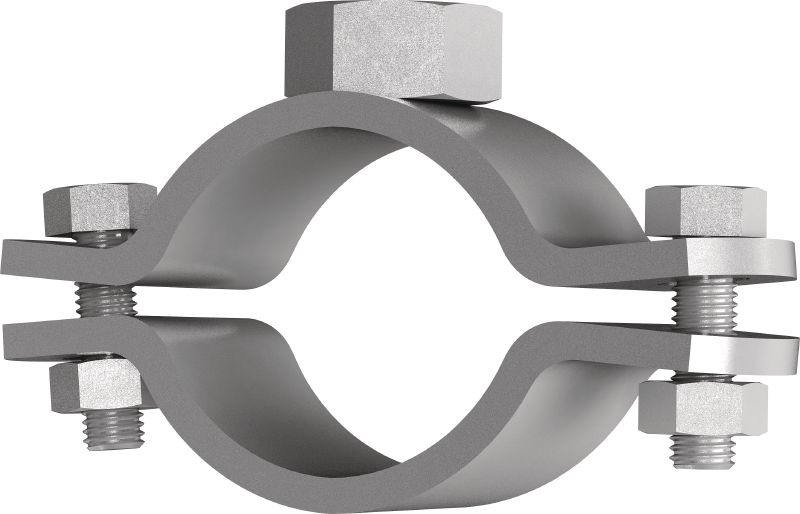

MFP-PC Fixed point pipe clamp

חבק MFP-PC 108-115 M20 #2227704

Galvanized fixed point pipe clamp for maximum performance in heavy-duty applications

  • Clamping Range - D: 108 - 115 mm
  • Thread connection - M: M20
  • Material composition: Steel
premium

Choose options

Clamping Range - D
  • 108 - 115 mm
Thread connection - M
  • M20
Pack size
  • 2 pc
Product options
Quantity
Pack
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

393.00 ILS

196.50 ILS / 1 each

Technical Data

IS_PR_0012_X12.eps
Clamping Range - D
108 - 115 mm
Thread connection - M
M20
Material composition
Steel
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Tightening torque
80 Nm
Cross Section Thickness - s
6 mm
Cross section width - b
50 mm
Distance between holes - A
172 mm
Product Class
Premium

Documents

Features & Applications

Features

  • Facilitates quicker and easier installation together with MFP fixed point sets
  • Tested and verified loads with comprehensive technical data
  • Versatile – can be installed on the connection boss or directly on the pipe clamp ears

Applications

  • Installing fixed points in combination with the different MFP fixed point sets
  • Installing pipes exposed to temperature changes
  • For use with pipe diameters from 21-326 mm
