PMP 45 Point laser

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L029496_V2.tif
PMP 45
31596.tif
PMP 45

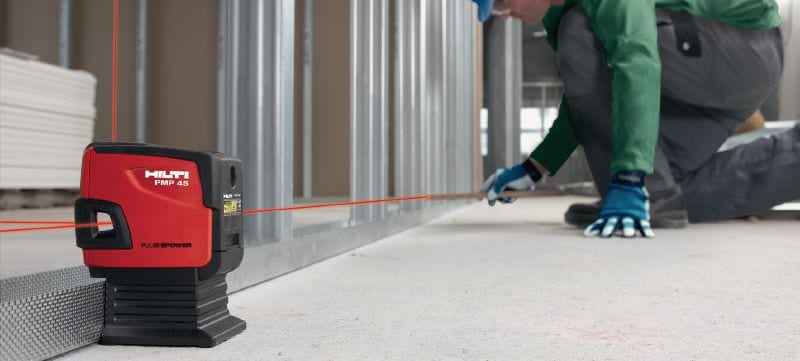

Point laser with 5 points for plumbing, leveling, aligning and squaring with red beam

  • Accuracy: ±2 mm at 10 m
  • Max. operating distance (diameter): 60 m (points)
  • Maximum operating time: 30 h

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 3,396.00 ILS

Technical Data

Accuracy
±2 mm at 10 m
Max. operating distance (diameter)
60 m (points) 1
Maximum operating time
30 h
Battery type
4 x 1.5 V (AA)
Self leveling range at room temperature
±5 °
Self leveling time
3 s
IP protection class
IP 54 (EN 60529)
Laser type
Point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PMP 45 (02), cn, German, Greek, English, Spanish, French, Italian, Japanese, Korean, Dutch, Portuguese, Turkish [ 6 MB ]

Features & Applications

Features

  • Five-directions laser points for precision 3D layout tasks up to 30 m/100 ft
  • Compact size allows high-speed layout
  • Impact protection system – rugged inner pendulum housing for higher robustness
  • Out-of-level and low-battery alerts – help prevent mistakes and unexpected downtime
  • Laser class 2 – no special precautionary measures needed

Applications

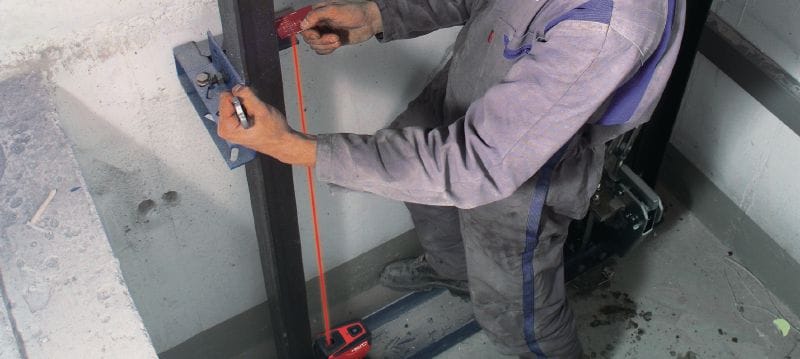

  • Vertical alignment of windows and doors
  • Vertical alignment of steel and timber structures
  • Transferring fastening points from floors to ceilings
  • Aligning and squaring drywall framing
  • Vertical alignment of steel beams

For approval or certificate information, please see individual items.
