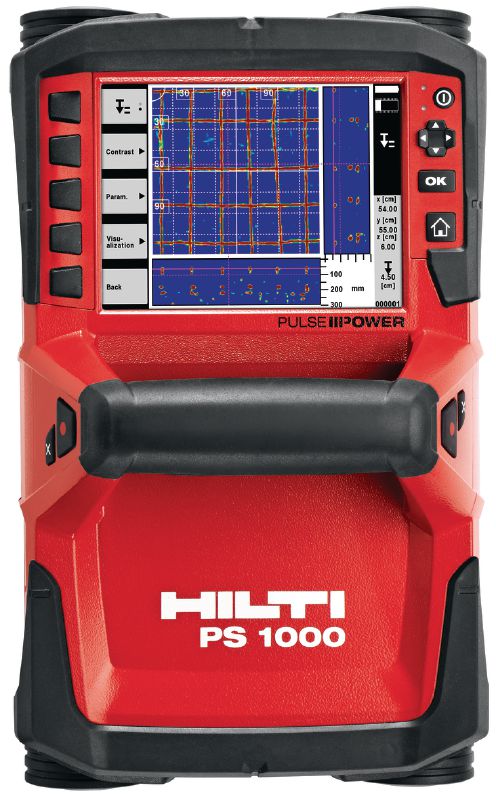

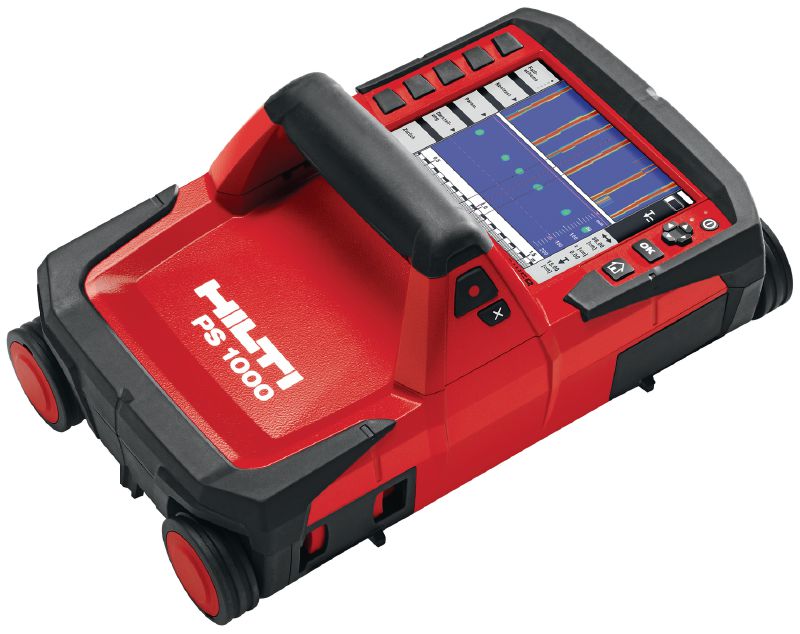

PS 1000 X-Scan Concrete scanner

Name: PS 1000 X-Scan Concrete scanner
Brand: Hilti
SKU: r6436760

Efficient concrete scanner for structural analysis and to locate embedded objects in multiple layers

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 90,642.35 ILS

Max. detection depth for object localization

300 mm ¹

Accuracy of depth indication

<100 mm: ±10 mm, >100 mm: ±15 % ²

Localization accuracy

±10 mm ³

Minimum distance between two neighbouring objects

40 mm

Operating temperature range

-10 - 50 °C

Data memory (scanner)

200 scans

Maximum operating time

4 h

Working temperature range

-10 - 50 °C

Weight with batteries

3 kg

Performance and accuracy can be significantly affected by site conditions. See operating instructions.
Performance and accuracy can be significantly affected by site conditions. See operating instructions.
Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation
Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan
Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification
Compact all-in-one design offers easy operation, plus unmatched data visualization means hundreds of square meters of concrete can be inspected in a day
Powerful monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation

Locating rebars, tendons, metal and plastic conduits, glass-fiber cables, voids and wood in dry concrete structures at depths of up to 300 mm

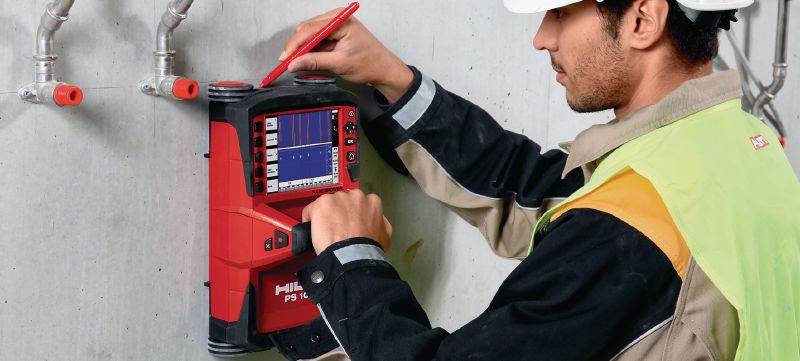

Minimizing hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work
Rebar extension (post-installed rebar connections) in structural applications

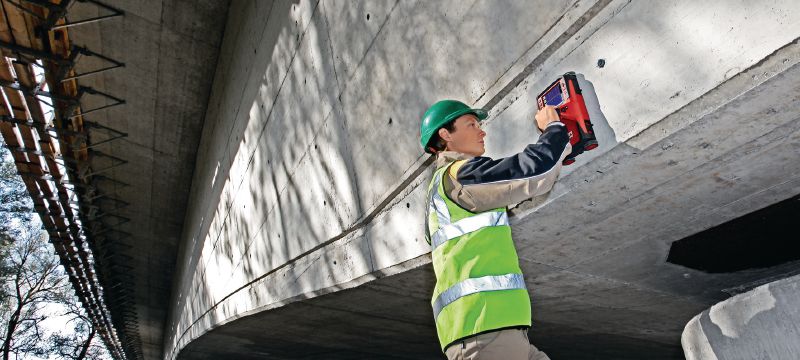

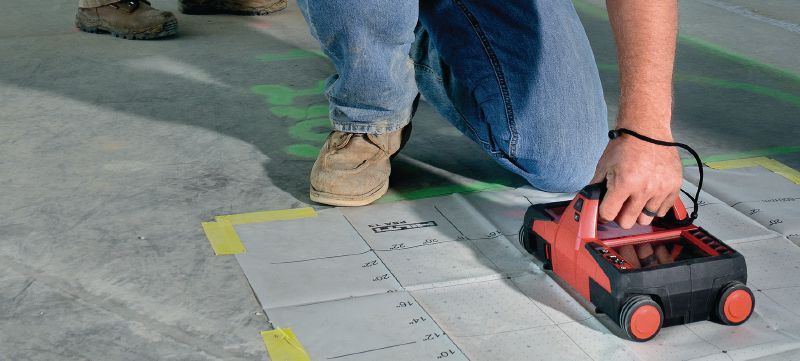

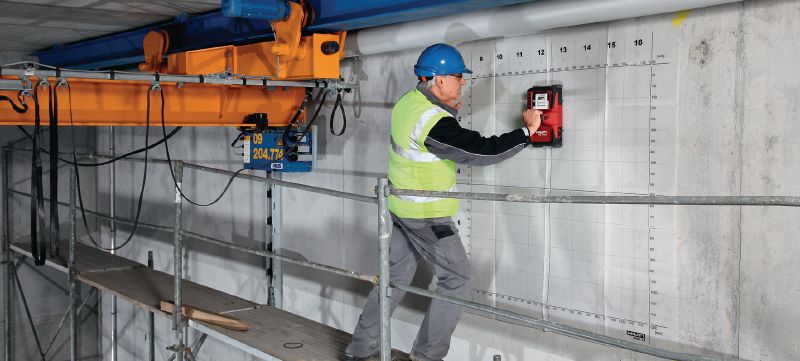

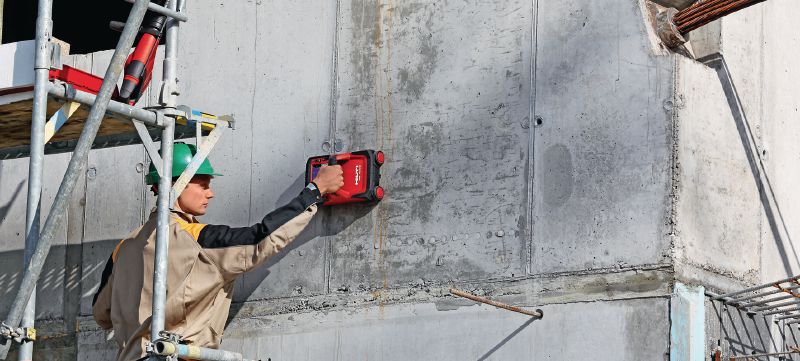

Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings
Detection of voids and cavities

For approval or certificate information, please see individual items.
