PT-C Thermal camera

Thermal imaging camera PT-C #2365710

Configurator
Technical Data
Documents
Features & Applications
Related Products
Still life picture of the thermal camara PT-C with the sensors open and battery B12-30

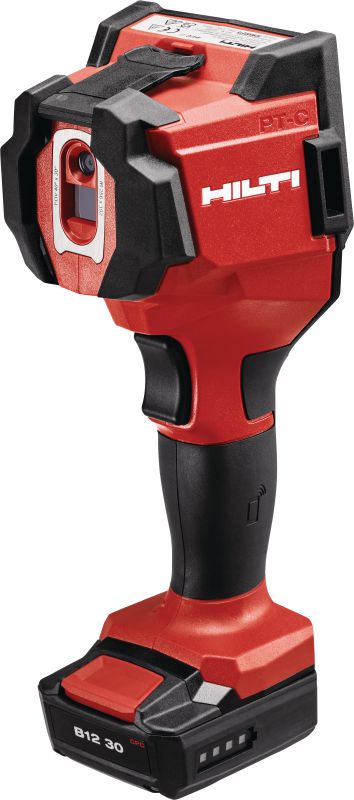

3D still life picture of the thermal camara PT-C with the sensors open and battery B12-30

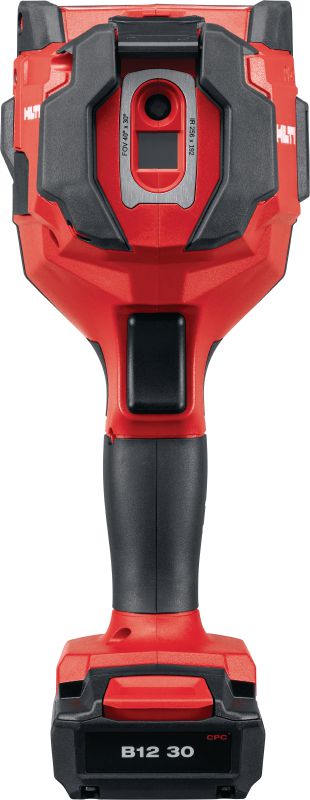

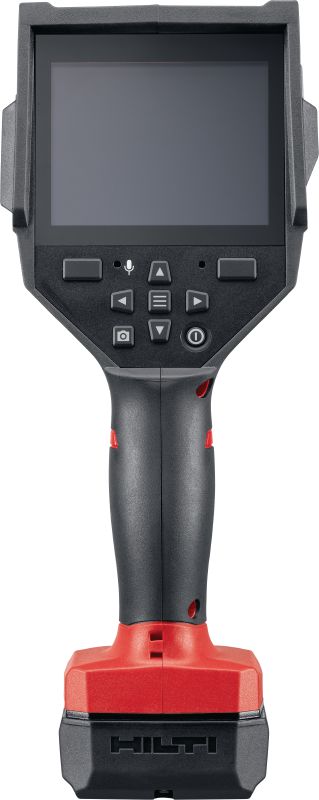

Still life picture of the frontal view of the thermal camara PT-C with battery B12-30

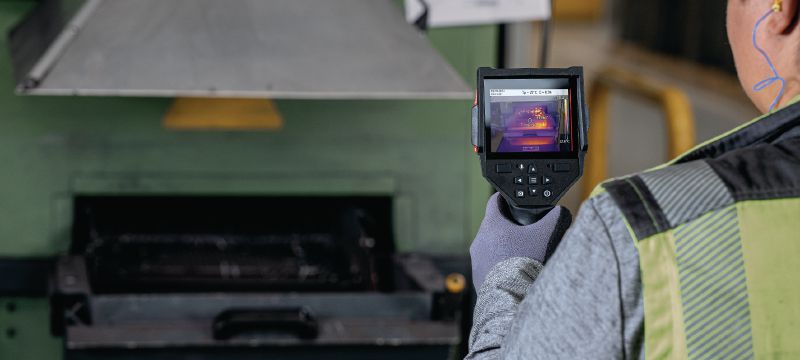

Cropped application picture of the PT-C thermal camara for checking thermal leaks on an industrial oven.

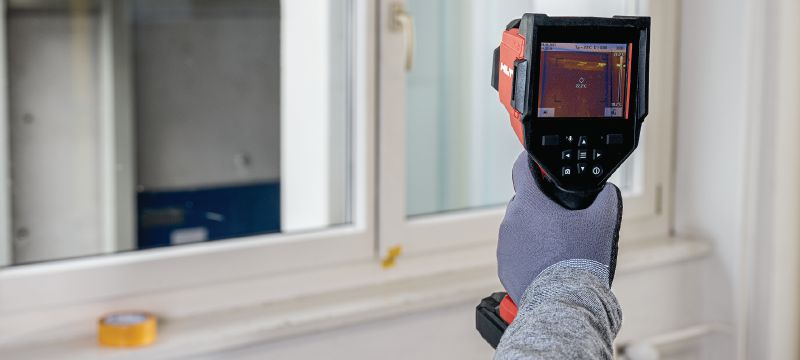

Cropped application picture of the PT-C thermal camara for detecting a thermal pane window leak.

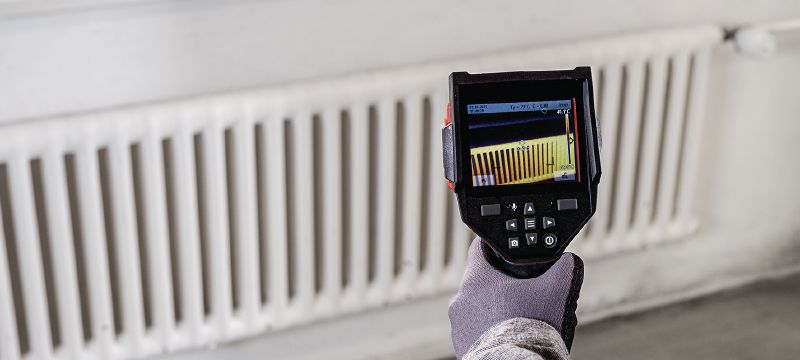

Application picture of the PT-C thermal camara for detecting thermal leaks on a radiator.

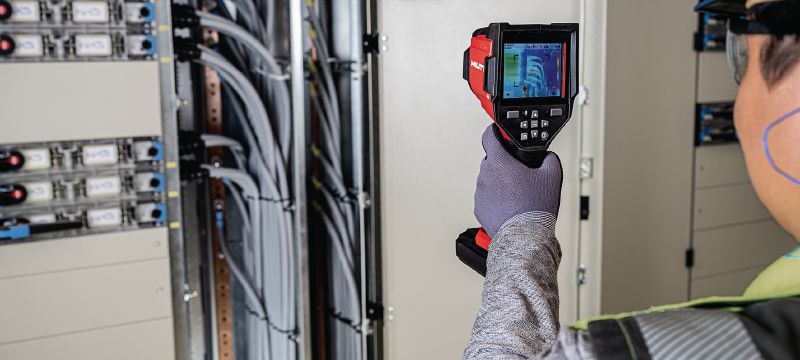

Cropped application picture of the PT-C thermal camara for inspecting electrical applications.

Infrared camera for thermal imaging, for inspecting electrical, mechanical, piping, and HVAC applications

  • Measuring accuracy: from -20 °C to -10 °C (-4 °F to 14 °F): +/- 4° C, from -10 °C to 100 °C (14 °F to 212 °F): +/- 2° C, from 100 °C to 600 °C (212 °F to 1112 °F): +/- 2 %
  • Temperature resolution: 0.1 °C
  • Operating temperature range: -10 - 50 °C

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
18,050.00 ILS
18,050.00 ILS
/
1 each

Technical Data

Measuring accuracy
from -20 °C to -10 °C (-4 °F to 14 °F): +/- 4° C, from -10 °C to 100 °C (14 °F to 212 °F): +/- 2° C, from 100 °C to 600 °C (212 °F to 1112 °F): +/- 2 %
Temperature resolution
0.1 °C
Operating temperature range
-10 - 50 °C
Resolution, infrared sensor
256 x 192 pixels
Field of view (FOV)
40° x 30°
Battery lifetime
10 h
Max. number of images in internal image memory
600
IP protection class
IP 54 (IEC 529)
Display size, diagonal
3.5 in
Dimensions (LxWxH)
107 x 104 x 238 mm

Documents

pdf Operating Instruction PT-C (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 21.1 MB ]

Features & Applications

Features

  • High resolution – high resolution infrared (IR) camera offers matching infrared and optical picture and helps you accurately pinpoint thermal leaks or installation errors faster
  • Wide temperature range – thermal imaging from -20 °C up to 600 °C covers a wide range of applications you need (including temperature calibration certificate)
  • Save on service fees – conducting thermal self-checks can help you detect potentially costly repairs earlier and avoid fees for outsourced thermal services
  • Robust ergonomic design – comfortable lightweight design and drop resistant up to 1.5m
  • Easier documentation – transfer data via USB-C including, voice notes, infrared picture, and optical picture to help you quickly document your work

Applications

  • Electrical – checking temperature distributions in fuse boxes, electrical components, and cable connections for overloads or failures
  • Mechanical – checking heating pipes, radiators, floor heating, air conditioning systems, and pipes for errors and leaks
  • Energy and industrial infrastructure – checking steam installations for heat leakage, insulation damage, steam traps, tank levels, coolant pipes, and solar panels
