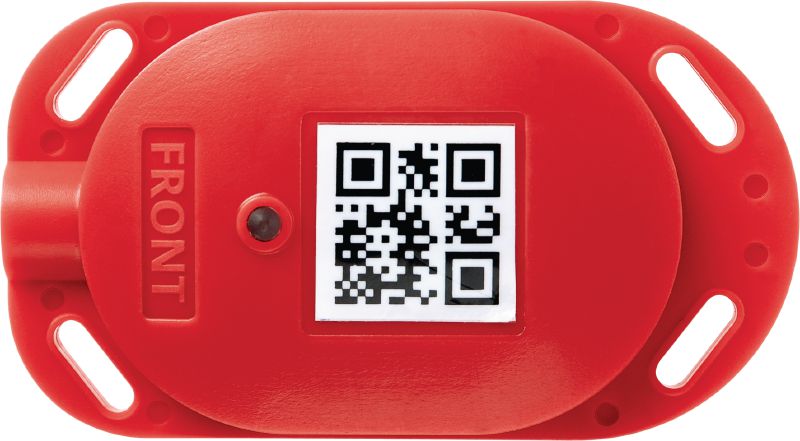

HCS T1 Concrete sensors (Bluetooth®)
Concrete maturity sensors for monitoring temperature and strength using Bluetooth® on-site data collection
- Monitoring: Strength and temperature
- Data collection: Bluetooth
- Data collection frequency: Strength and temperature: every 15 minutes for the first 60 days
Choose options
Data collection
- Bluetooth

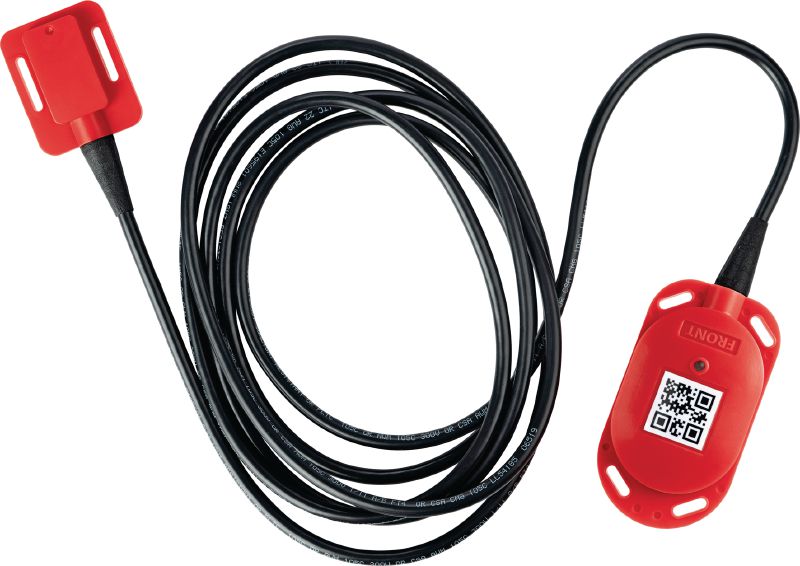

Cable length Lc
- 91 cm
- 245 cm
- 456 cm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Monitoring
Strength and temperature
Data collection
Bluetooth
Data collection frequency
Strength and temperature: every 15 minutes for the first 60 days
Standards
Complies with ASTM C1074
Wireless signal range (up to)
30.5 m
Temperature - range
-40 °C - 85 °C
Documents
Features & Applications
Features
- More efficient scheduling – concrete maturity sensors put live curing data at your fingertips to better plan the day’s work
- Avoid concrete testing delays – shave up to 1-2 days off every pour cycle by switching to live curing data
- Optimize rental costs – rent equipment only once your concrete is strong enough

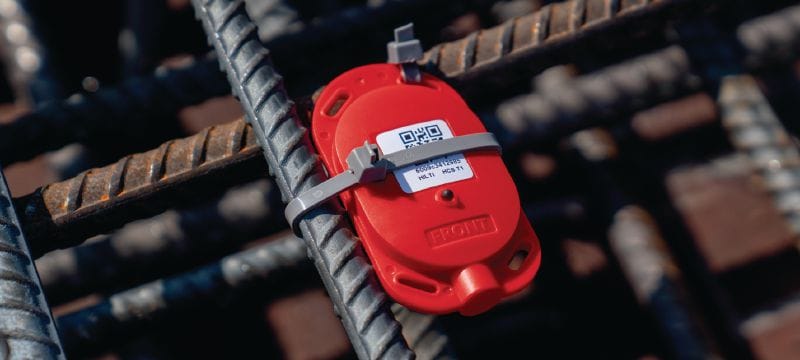

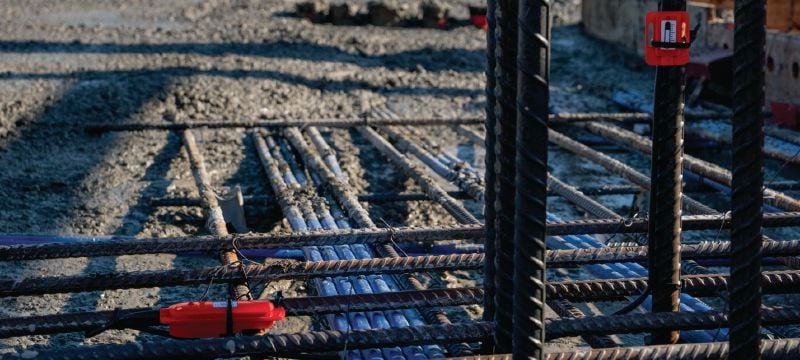

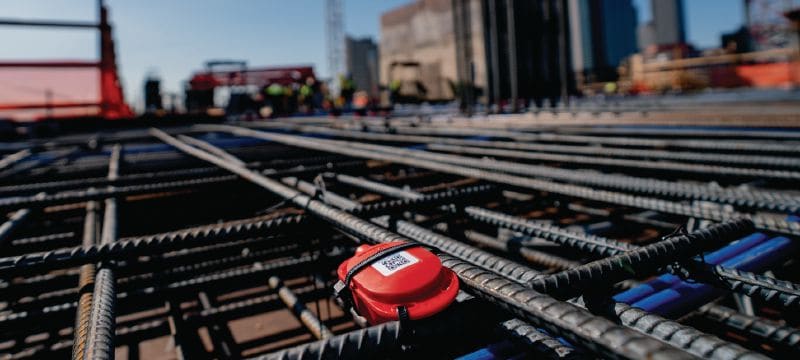

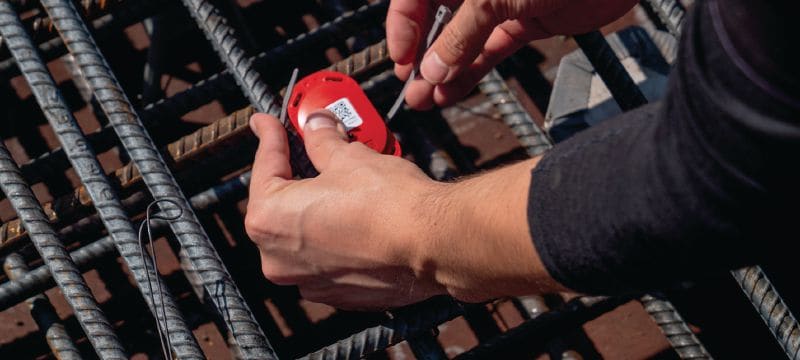

- Easy to use – simply attach the concrete sensors to rebar using cable ties before you pour, and see the results from anywhere using mobile Apps or desktop software
Applications
- Concrete strength monitoring – know immediately when formwork stripping can take place, and when rental equipment is needed
- Concrete temperature measurement – know when to mitigate against extreme temperatures

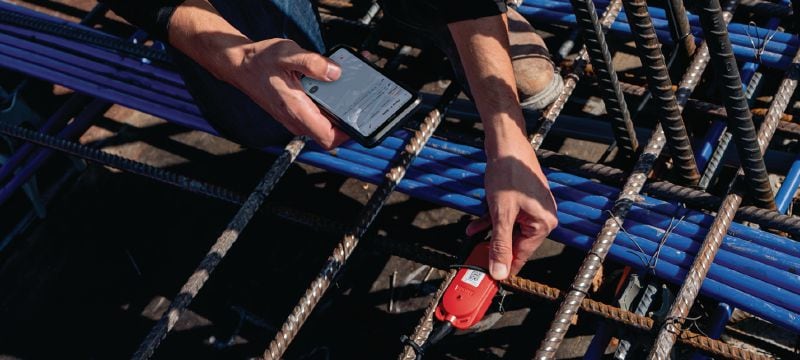

- Bluetooth®-based sensors are ideal for checking concrete maturity while you’re on-site and in range of the sensor. If your project will have sensors distributed over a large area or you need continuous monitoring with cloud-based access to the information from anywhere, we recommend HCS T2 long-range concrete sensors
- For monitoring strength, a laboratory calibration service may be required. Contact your Hilti sales representative for further information
For approval or certificate information, please see individual items.
