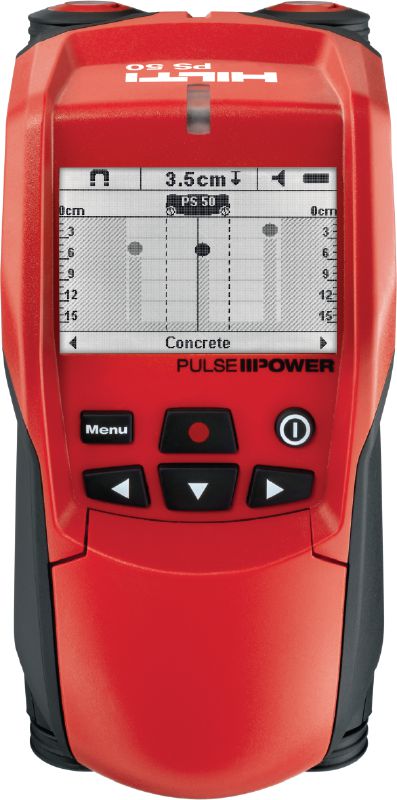

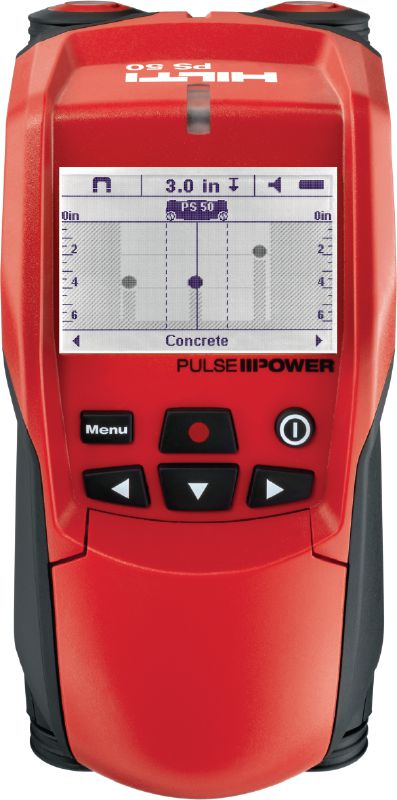

PS 50 Multidetector

Configurator
Technical Data
Features & Applications
Related Products
Services
Multidetector, IF Award 2011
Multidetector, IF Award 2011
L062046.tiff
L062078.tiff
31949.tif
PS 38

Versatile detector to find rebar, pipes, live wire and wood for safe drilling

  • Max. detection depth for object localization: 150 mm
  • Accuracy of depth indication: ±10 mm
  • Localization accuracy: ±5 mm

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Max. detection depth for object localization
150 mm 1
Accuracy of depth indication
±10 mm 2
Localization accuracy
±5 mm 3
Minimum distance between two neighbouring objects
40 mm
Operating temperature range
-10 - 50 °C
Maximum operating time
5 h
Working temperature range
-10 - 50 °C
Weight with batteries
1 kg
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  3. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Features & Applications

Features

  • Built-in display – shows location, embedment depth and type of detected objects at a glance
  • Detection of a wide range of objects thanks to the combination of multiple sensor technologies
  • User-friendly menu for selection of the appropriate base materials – universal, concrete, wet concrete, underfloor heating, drywall or hollow brick
  • Ergonomically designed and ruggedly built – shock, dust and water-resistant
  • Helps you drill right the first time – knowing where to drill helps avoid costly repairs, saves time and prevents drill bits from being destroyed by rebar

Applications

  • Detecting metal, wood or plastic objects and electrical conduits at depths up to 150 mm

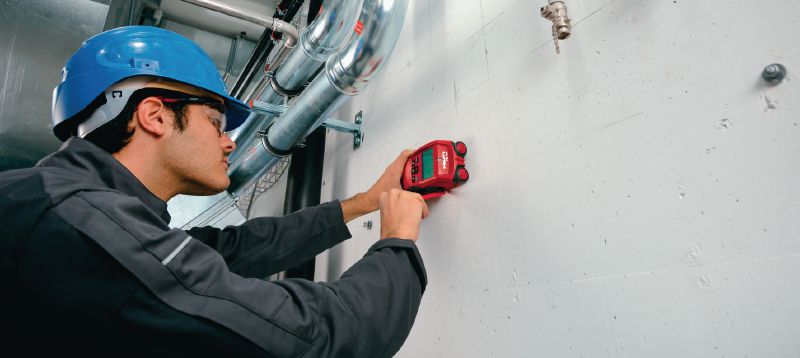

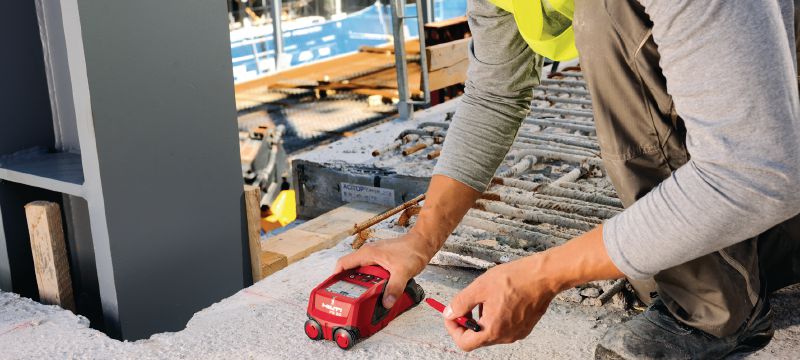

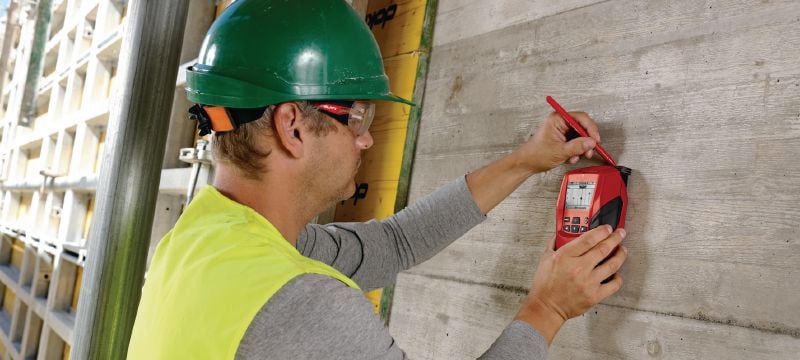

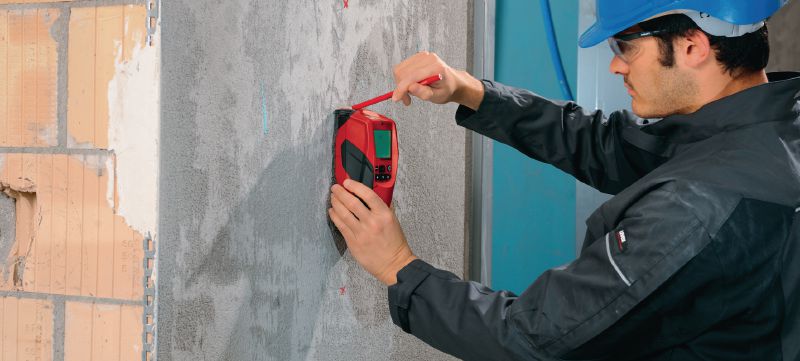

  • Quickly and easily locating objects under the surface of structures prior to drilling, coring, sawing or slitting
  • Drilling anchor holes or through penetrations for pipe and cable installations with minimized risk of hitting concealed objects
  • Locating underfloor heating pipes or other pipe and cable runs
  • Setting anchors in hollow or thermally activated slabs

For approval or certificate information, please see individual items.
