CFS-SL GA Extended Speed Sleeve

Configurator
Technical Data
Documents
Features & Applications
Related Products
Firestop Sleeve CFS-SL GA L
Firestop Sleeve CFS-SL GA S

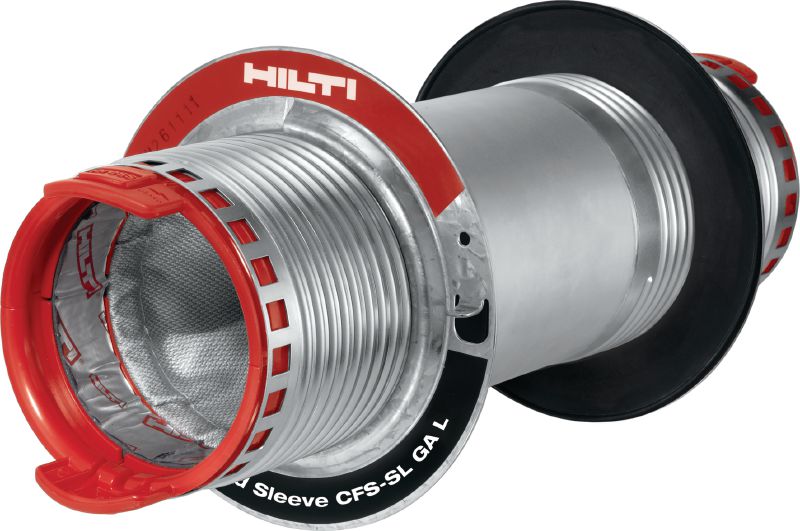

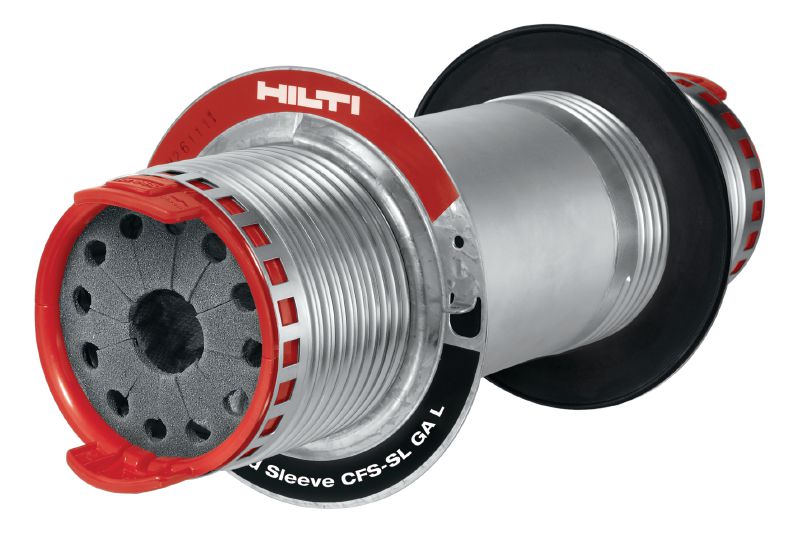

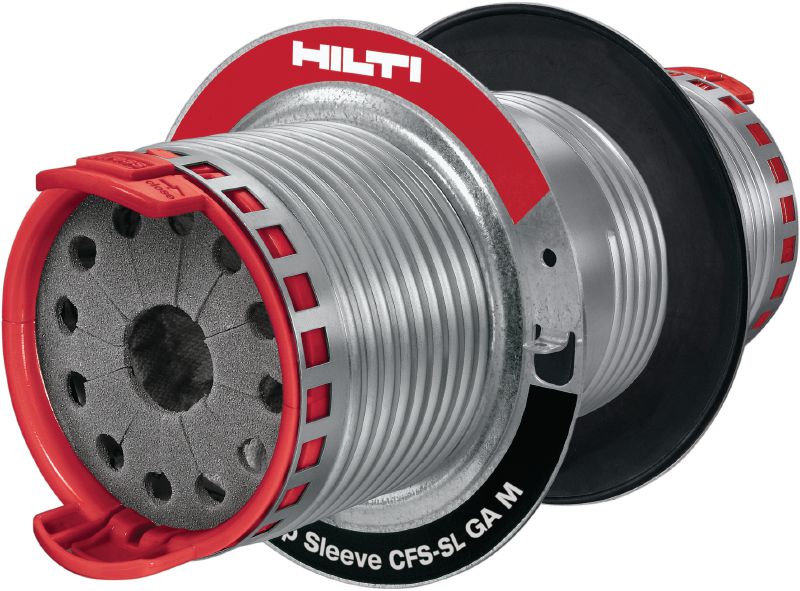

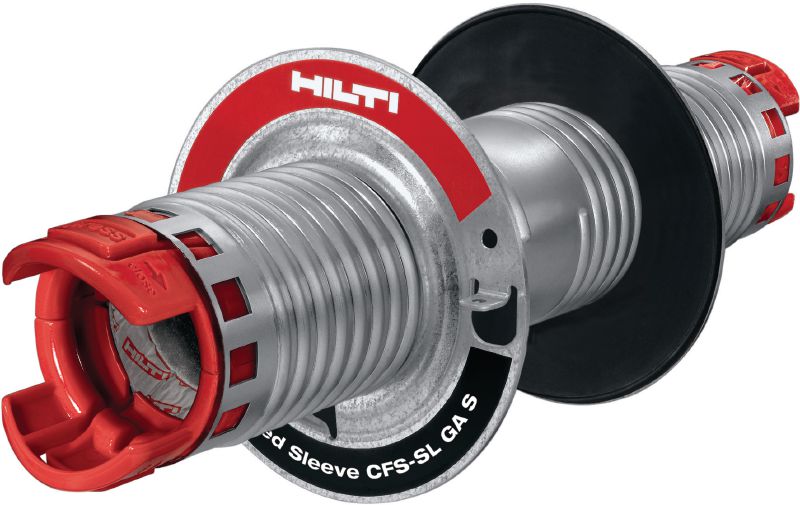

Speed sleeve 3D product picture
Speed sleeve 3D product picture

Pathway device for high-traffic cabling with optimal airflow control

  • Base materials: Drywall, Concrete, Masonry, Wood, Sandwich Panel, Aerated Concrete
  • Reaction to fire class (EN 13501-1): E
  • Product Class: Ultimate
ultimate

Choose options

Outside diameter
  • 63 mm
  • 113 mm
Length
  • 315 mm
  • 315
  • 415 mm
  • 415
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 365.00 ILS

Technical Data

Base materials
Drywall, Concrete, Masonry, Wood, Sandwich Panel, Aerated Concrete
Reaction to fire class (EN 13501-1)
E
Product Class
Ultimate

Documents

Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf Technical_Manual_Sandwich_panel_2021, English [ 6.2 MB ]

Features & Applications

Features

  • Functional and compliant when properly installed
  • Twist-to-close mechanism – for easier and remote re-penetration while protecting cables
  • Straightforward inspection – you can see if the sleeve is closed without having to check behind a covering fringe above the ceiling
  • Superior smoke tightness and airflow control thanks to its twisting mechanism
  • Smoke gaskets eliminate need for sealant or putty

Applications

  • Sealing penetrations for single cables and cable bundles
  • Suitable for small to medium-sized circular openings in walls and ceilings
  • For use on drywall, concrete, masonry and sandwich panel
  • The ideal solution when cable configurations are regularly changed, such as in data centers, server rooms, hospitals, event halls or production plants

For approval or certificate information, please see individual items.
