CFS-T cable module

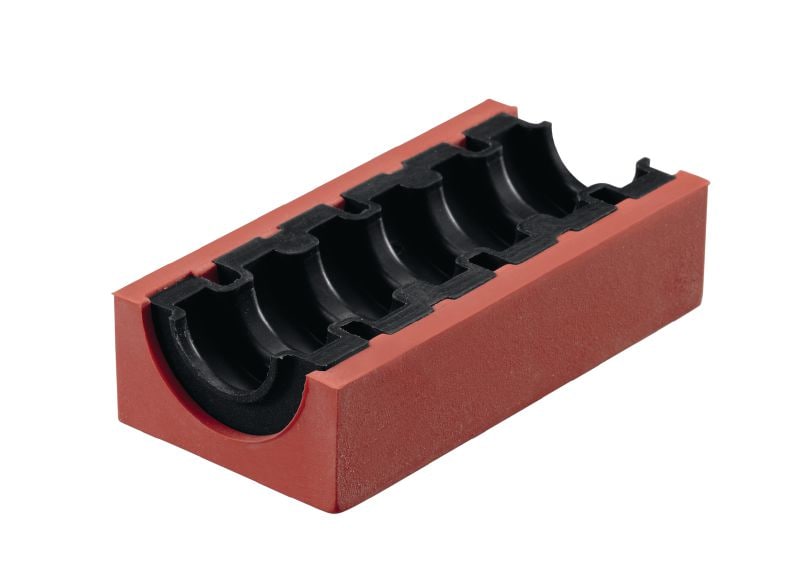

module block
Module block with black adapter

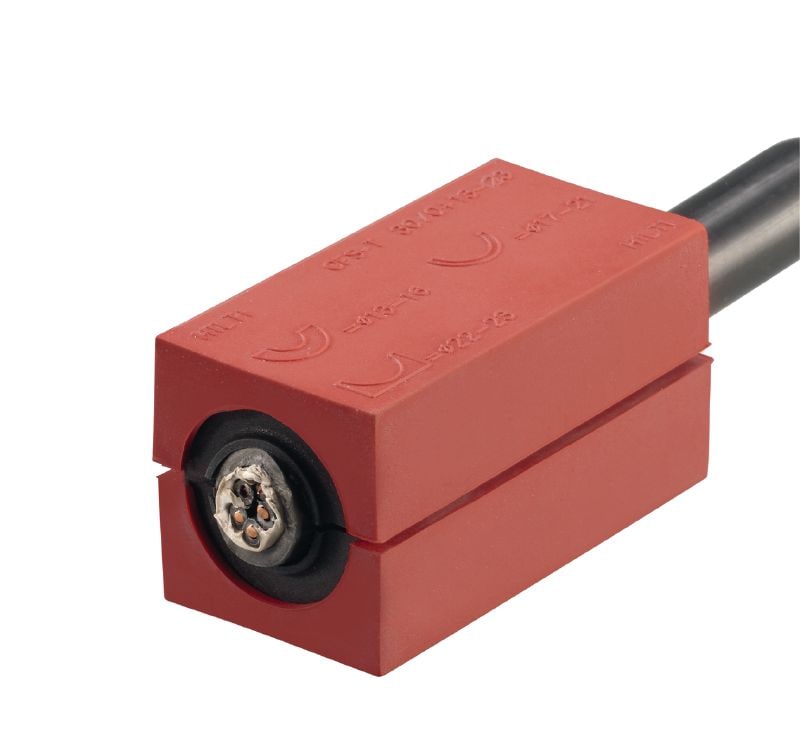

Module with cable

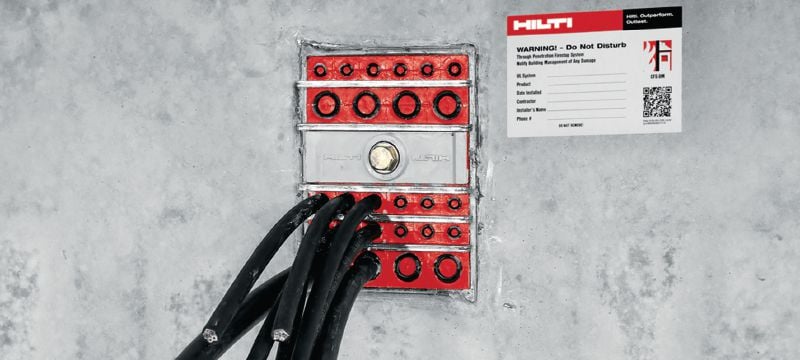

Transit Frame CFS-T SS-4x1 (wedge in middle position)

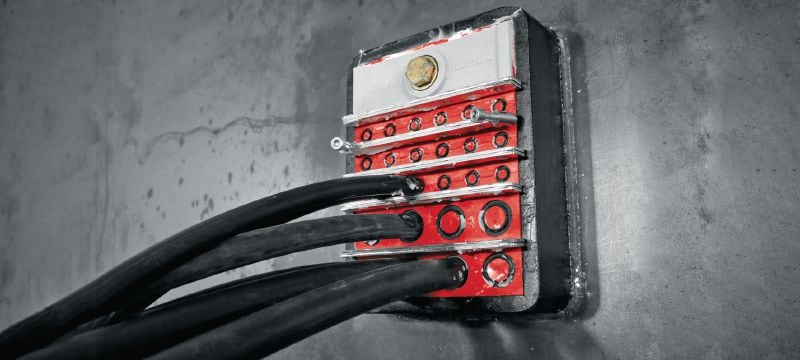

Transit Frame CFS-T SS-4x1 (in steel bulkhead)
CFS-T SBSOTransit Frame CFS-T SBSOTransit Frame CFS-T SS-4x1 (including filler blocks, in steel bulkhead)
module block
Module block with black adapter
Module with cable
Transit Frame CFS-T SS-4x1 (wedge in middle position)
Transit Frame CFS-T SS-4x1 (in steel bulkhead)
CFS-T SBSOTransit Frame CFS-T SBSOTransit Frame CFS-T SS-4x1 (including filler blocks, in steel bulkhead)

Modules to seal cables/pipes within a transit frame when high water- and gas-tightness and fire-resistance are required

  • Approvals: UL
  • Temperature resistance range: -40 - 50 °C
  • Reaction to fire class (EN 13501-1): E

Choose options

Base materials
  • Concrete, Steel
Cable diameter - range
  • 3 - 9 mm
  • 5 - 12 mm
  • 13 - 23 mm
  • 23 - 33 mm
  • 34 - 51 mm
  • 52 - 78 mm
  • 79 - 99 mm
Module Height
  • 15 mm
  • 20 mm
  • 30 mm
  • 40 mm
  • 60 mm
  • 90 mm
  • 120 mm
Pack size
  • 1 pc
  • 4 pc
  • 9 pc
  • 16 pc
  • 36 pc
  • 64 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 409.00 ILS

Technical Data

Approvals
UL
Temperature resistance range
-40 - 50 °C
Reaction to fire class (EN 13501-1)
E

Documents

Features & Applications

Features

  • Simplified inventory management – only 7 different modules are needed to cover all cable diameters from 3 to 99 mm
  • Versatile adapter modules for quicker, easier accommodation of each cable diameter
  • Time-saving installation thanks to module interlinking, especially where cables run vertically through deck/floor penetrations
  • Color-coded adapter system to make inspection easier and more reliable

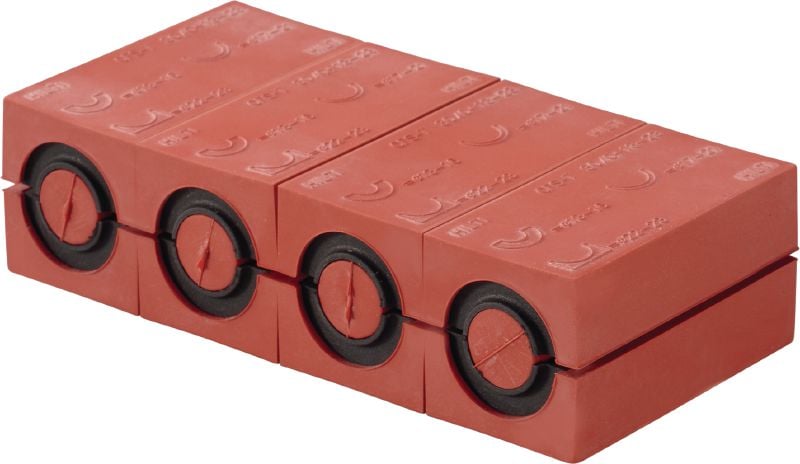

  • Cable modules (up to size 40 mm) are supplied in a joined-together state and can be easily separated for individual use.

Applications

  • Penetrations in shipbuilding and offshore applications
  • Penetrations in wind power structures
  • Telecom, datacenter, downstream (oil and gas), petrochem, control rooms, healthcare, emergency power and transmission towers

For approval or certificate information, please see individual items.
