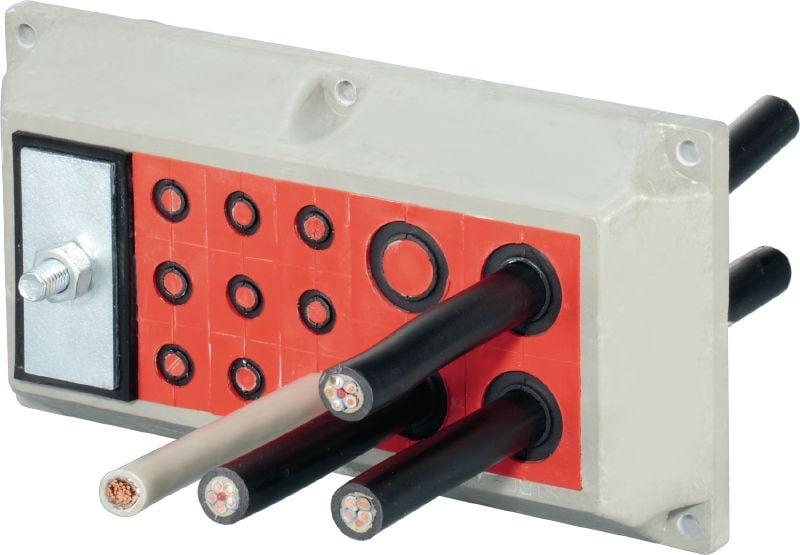

CFS-T STRF system

Transit frames for fitting modules to seal cables which penetrate switch cabinets

Frame size

Number of frame columns

Base materials

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 396.00 ILS

Technical Data

Temperature resistance range

-40 - 50 °C

Reaction to fire class (EN 13501-1)

pdf Technical manual CFS-T W4529 0424 g, English [ 2.3 MB ]

Simplified inventory management – only 4 different modules are needed to cover all cable diameters from 3 to 33 mm
Seals cables and pipes against dust and splashed water (up to safety class IP-65)
Frames available in two standard sizes (inner width of 60 mm, inner length of 150 or 210 mm)

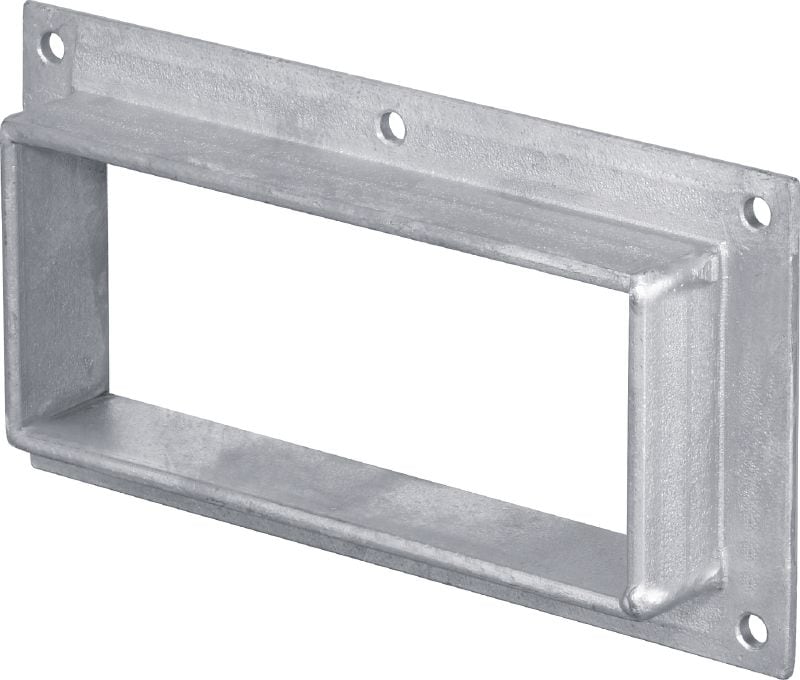

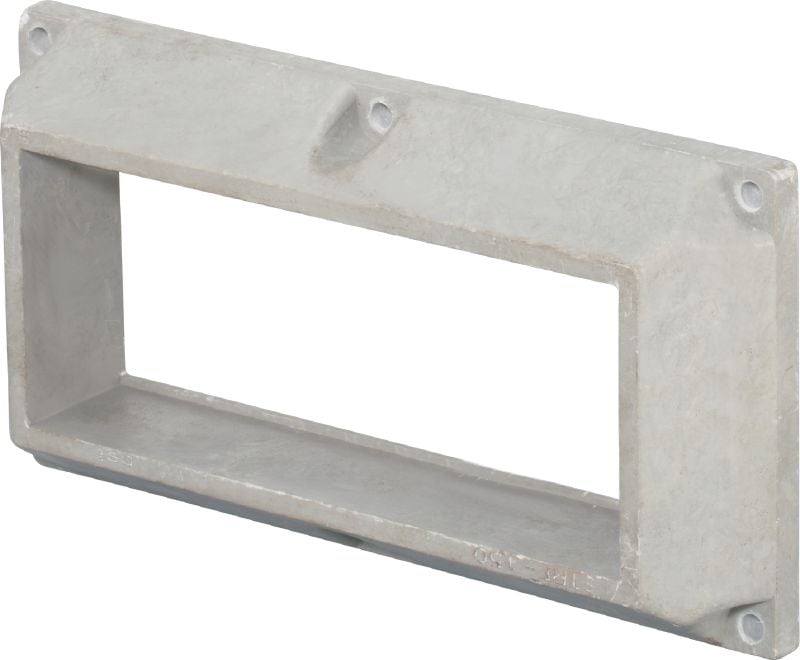

Frames available in glass-fiber and galvanized steel

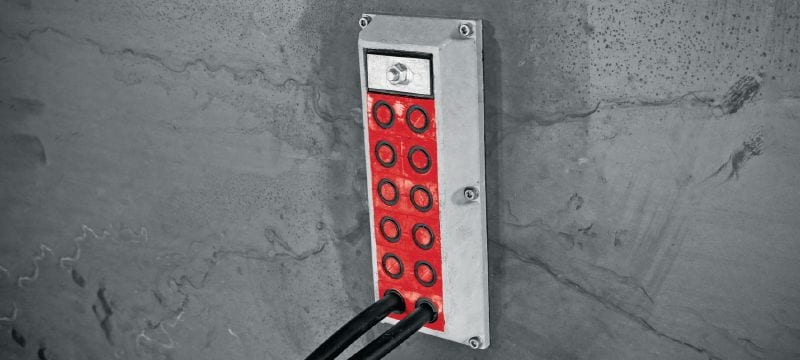

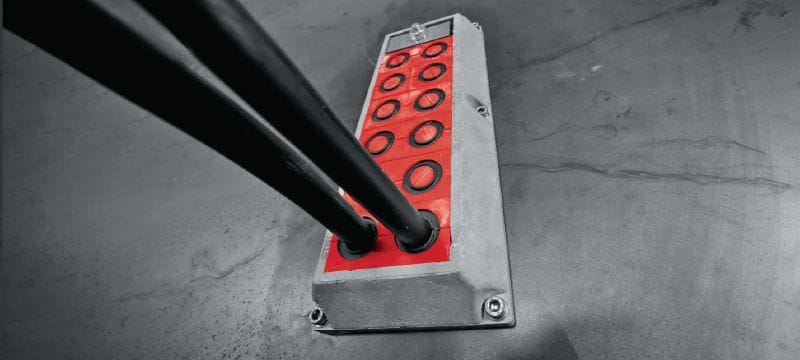

Sealing cables, pipes and other conduits leading into switch cabinets, appliancesand casings

For approval or certificate information, please see individual items.
