S-BT-ER HC Screw-in stud

Elec. connector S-BT-ER M10 HC 120 #2204739

Configurator
Technical Data
Documents
Features & Applications
Related Products
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector

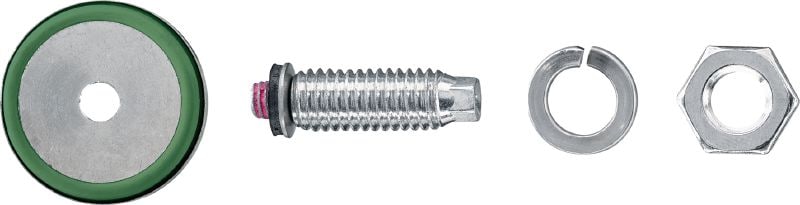

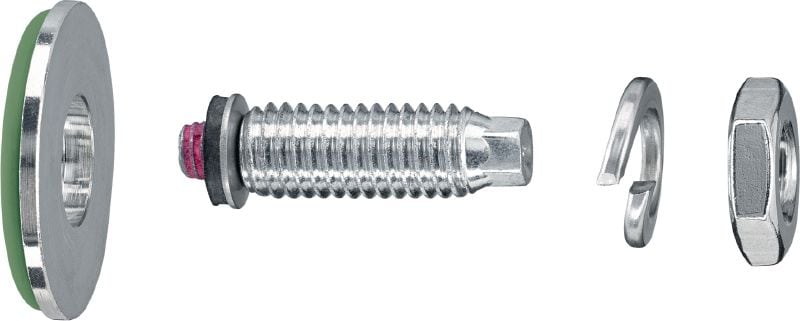

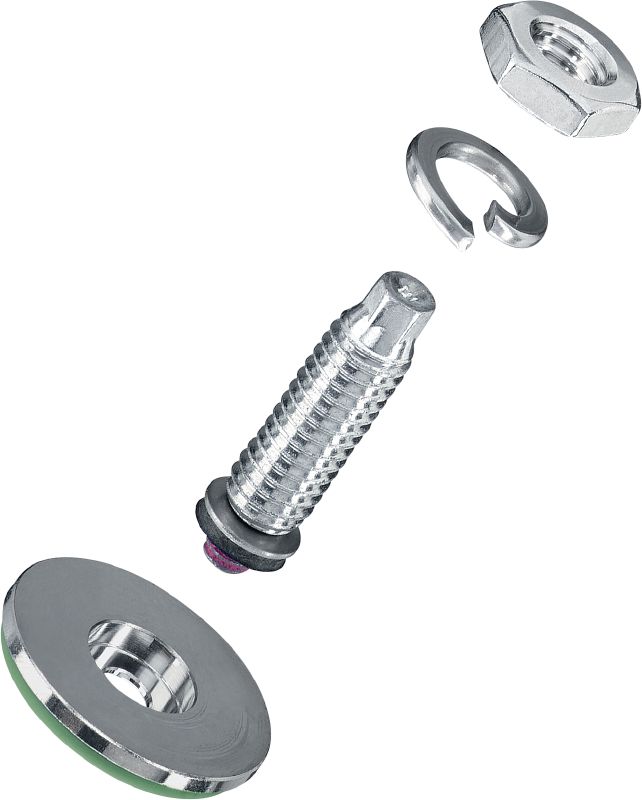

Threaded screw-in stud (stainless steel, metric thread) for electrical connections on steel in highly corrosive environments, recommended maximal cross section of connected cable 120 mm²

  • Point type: Blunt tip
  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
ultimate

Choose options

Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
11,785.00 ILS
117.85 ILS
/
1 each

Technical Data

Point type
Blunt tip
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Equivalent corrosion protection as A4(316)
Material
Duplex stainless steel (1.4462)
Tightening torque
8 Nm
Approvals
BV, DNV, UL
Product Class
Ultimate

Documents

Approval document
Technical information
Operating Instruction
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]

Features & Applications

Features

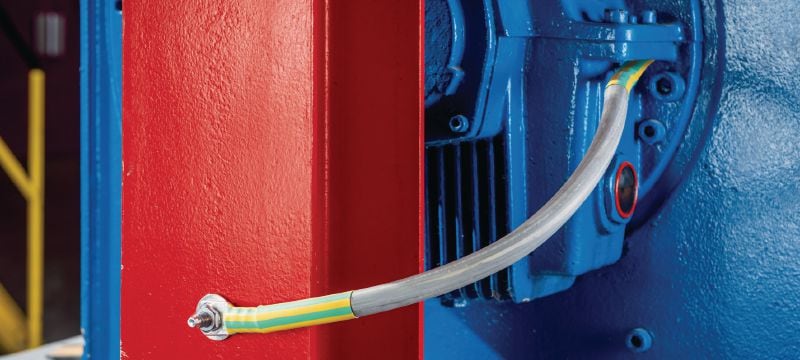

  • Ideal for equipotential bonding
  • Enhanced protection against static electricity
  • Enhanced safety – allows electrical current to flow through the conductivity disc and then discharges it properly into the base material
  • Suitable for use on most standard steel structures
  • Stainless steel material provides high corrosion resistance – suitable for use in most industries: marine, offshore, petrochemical and power plant applications

Applications

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection

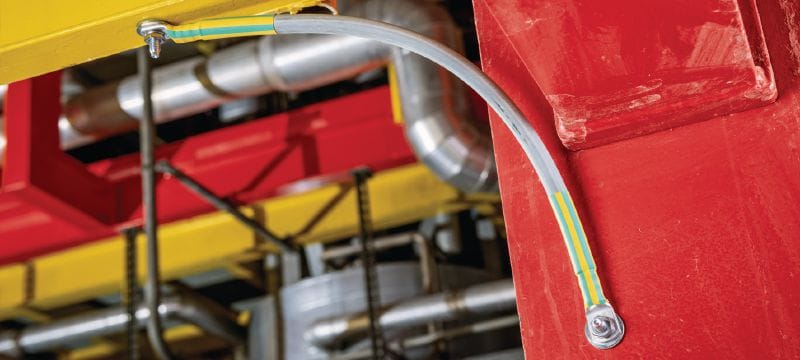

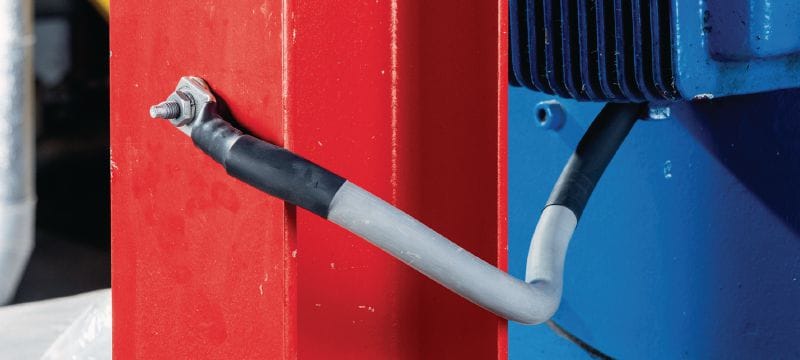

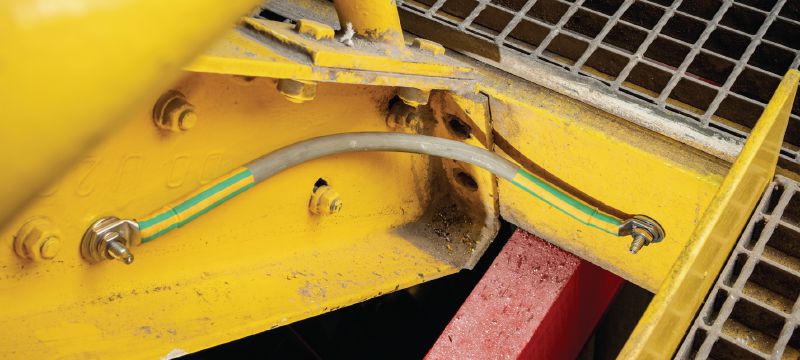

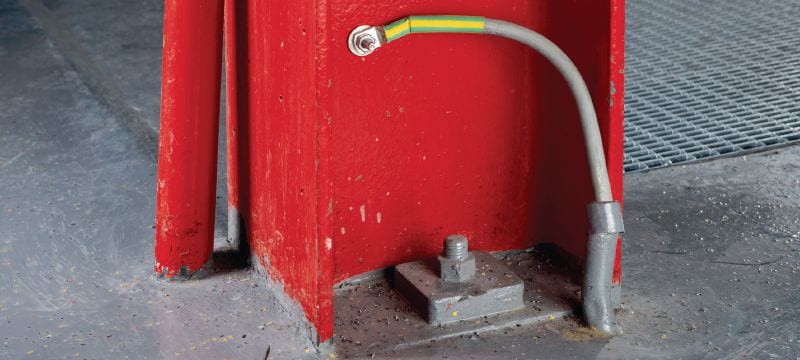

  • Bonding and earthing/grounding
