Electrical connector S-BT-EF HC

Elec. connector S-BT-EF M10 HC 120 #2204932

Configurator
Technical Data
Documents
Features & Applications
Related Products
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector

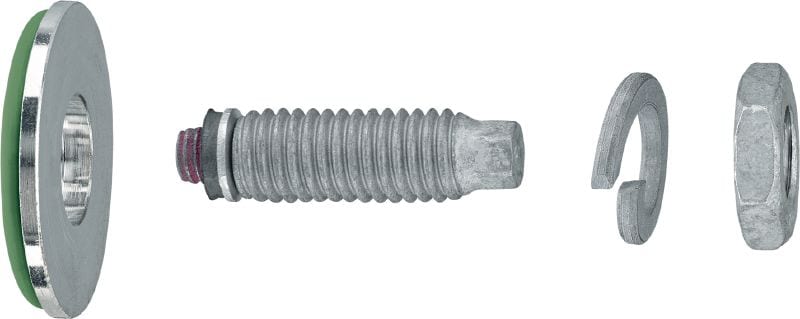

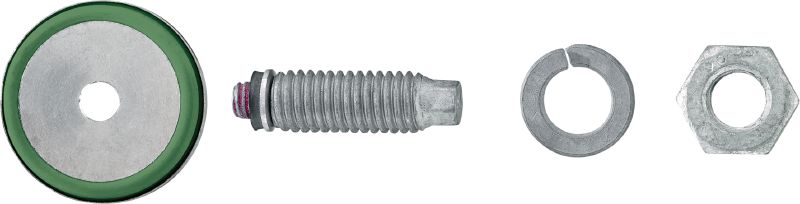

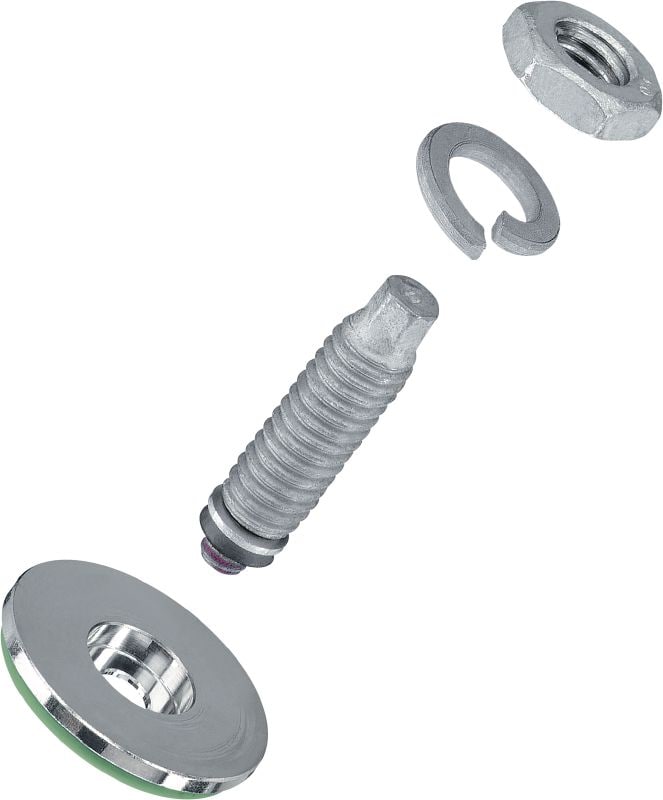

Threaded screw-in stud (carbon steel, metric thread) for electrical connections on steel in mildly corrosive environments. Recommended maximal cross-section of connected cable: 120 mm²

  • Point type: Blunt tip
  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
ultimate

Choose options

Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
11,208.00 ILS
112.08 ILS / 1 each

Technical Data

Point type
Blunt tip
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Duplex coating equivalent to 45 µm hot dipped galvanized
Environmental conditions
Indoors or mildly corrosive environment
Material
Carbon steel
Tightening torque
8 Nm
Approvals
BV, DNV, UL
Product Class
Ultimate

Documents

Approval document
Technical information
Operating Instruction
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]

Features & Applications

Features

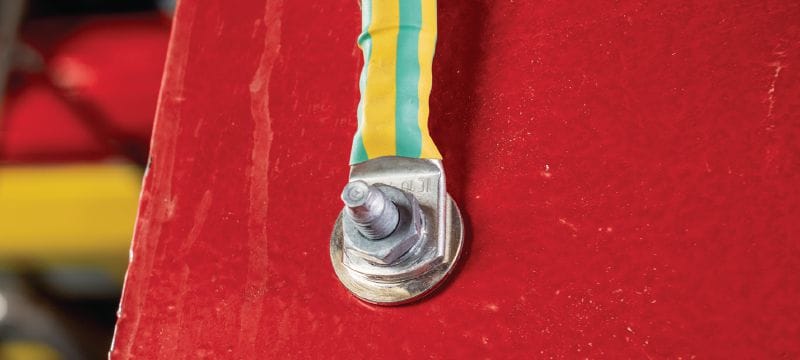

  • Ideal for equipotential bonding
  • Enhanced protection against static electricity
  • Enhanced safety – allows electrical current to flow through the conductivity disc and then discharges it properly into the base material
  • Suitable for use on most standard steel structures
  • Suitable for use in mildly corrosive environments (C3)

Applications

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection
  • Bonding and earthing/grounding
