Electrical connector S-BT-ER

Configurator
Technical Data
Documents
Features & Applications
Related Products
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector
Electrical connector

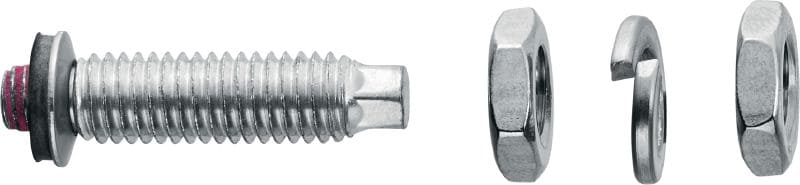

Threaded screw-in stud (stainless steel, metric thread) for electrical connections on steel in highly corrosive environments

  • Point type: Blunt tip
  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
ultimate

Customers also searched for Electrical Bonding, Grounding, Earthing, Flange Bonding or Electrical Grounding.

Choose options

Thread size
  • M8
  • M10
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 2,284.00 ILS

Technical Data

Point type
Blunt tip
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Marine, offshore, petrochemical, power plants, etc.
Material
Duplex stainless steel (1.4462)
Tightening torque
8 Nm
Approvals
BV, DNV, UL
Product Class
Ultimate

Documents

Approval document
Operating Instruction
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]
pdf UL E257069 for X-BT and S-BT fastenings of grounding and bonding equipment, English [ 79.7 KB ]
pdf Canadian UL E257069 for X-BT and S-BT fastenings of grounding and bonding equipment, English [ 80.1 KB ]

Features & Applications

Features

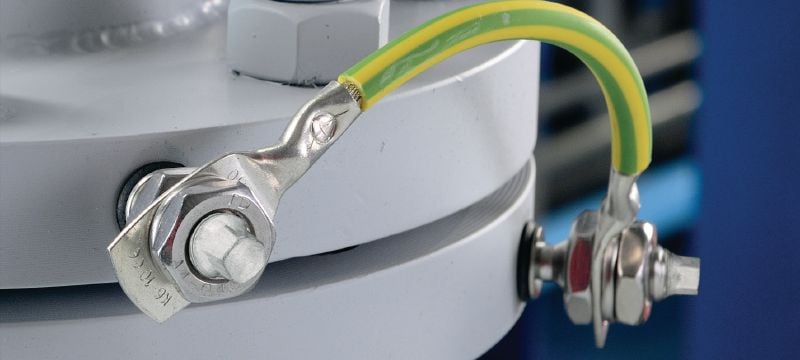

  • Ideal for equipotential bonding
  • Enhanced protection against static electricity
  • Enhanced safety – allows electrical current to flow through the stud and then discharges it properly into the base material
  • Suitable for use on most standard steel structures and pipes
  • Stainless steel material provides high corrosion resistance – suitable for use in most industries: marine, offshore, petrochemical and power plant applications

Applications

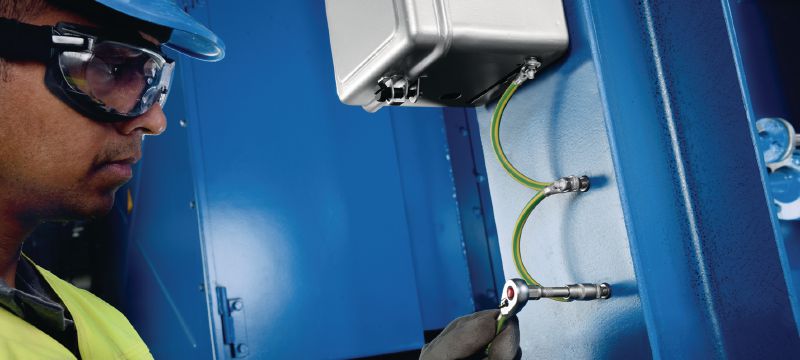

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection
  • Bonding and earthing/grounding

For approval or certificate information, please see individual items.
