S-BT-GF Threaded Stud

Threaded stud S-BT-GF M8/7 AN 6 #2140527

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-BT-MF_M8/7_AN_6,_S-BT-GF_M8/7_AN_6
S-BT-GF/_S-BT-GR,_Threaded_stud
S-BT-GF/_S-BT-GR,_Threaded_stud

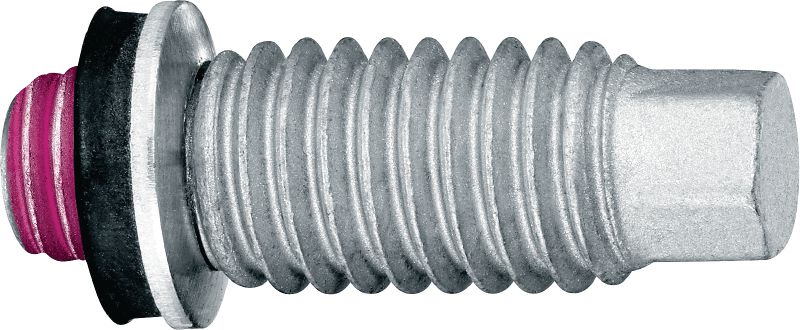

S-BT-GF/ S-BT-GR, Threaded stud

Threaded screw-in stud (carbon steel, metric thread) for grating fastenings on steel in mildly corrosive environments

  • Point type: Blunt tip
  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
ultimate

Customers also searched for steel studs, threaded stud, stainless threaded stud, studs for steel or threaded stud for steel.

Choose options

Thread size
  • M8
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1,533.00 ILS
15.33 ILS / 1 each

Technical Data

Point type
Blunt tip
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanized
Environmental conditions
Outdoor, mildly corrosive
Material
Carbon steel
Thread diameter
8 mm
Tightening torque
8 Nm
Thread size
M8
Approvals
ABS, BV, DNV, ETA, ICC-ES, LR, RMR
Product Class
Ultimate

Documents

Approval document
Brochure
Reference document
Certificate
Operating Instruction
pdf ETA-20/0530_S-BT_2020.09.18_en, German, English [ 3.3 MB ]
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]

Features & Applications

Features

  • The S-BT-GF is easier and more reliable to use – requires no electric supply cords or heavy equipment for installation
  • Suitable for use in mildly corrosive environments (C3)
  • Easy installation in tight spaces
  • Eliminates the need for refinishing work
  • No propellant required

Applications

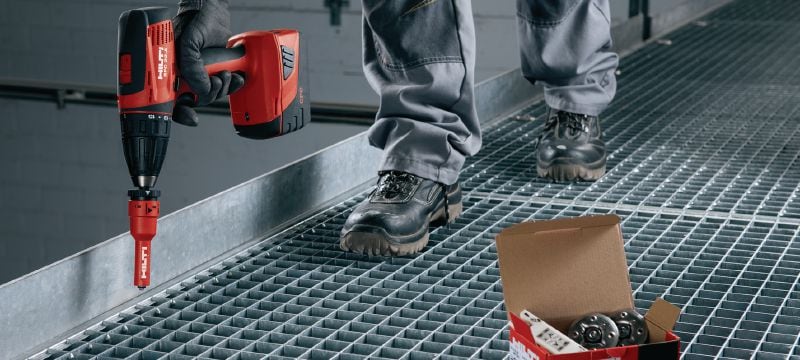

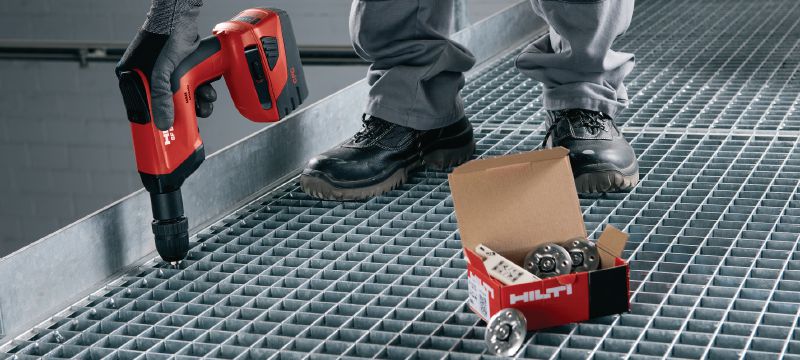

  • Fastening gratings to steel structures
  • For fastening with the X-FCM-F grating disc
