S-BT GR Threaded Stud

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-BT-MR_M8/7_SN_6,_S-BT-GR_M8/7_SN_6,_Threaded_stud
S-BT-GF/_S-BT-GR,_Threaded_stud
S-BT-GF/ S-BT-GR, Threaded stud
S-BT-GF/_S-BT-GR,_Threaded_stud

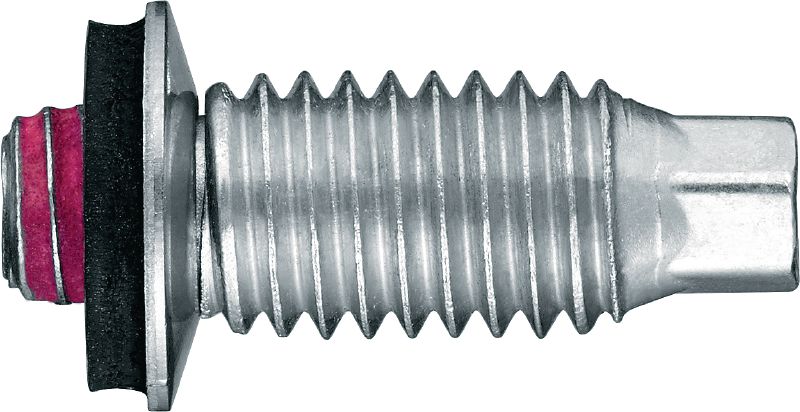

Threaded screw-in stud (Stainless Steel, Metric thread) for grating fastenings on steel and aluminum in highly corrosive environments

  • Point type: Blunt tip
  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
ultimate

Customers also searched for stainless steel studs, stainless stud, threaded stud, stainless threaded stud or studs for stainless steel.

Choose options

Thread size
  • M8
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 1,725.00 ILS

Technical Data

Point type
Blunt tip
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Material
Duplex stainless steel (1.4462)
Approvals
ABS, BV, DNV, ETA, ICC-ES, LR, RMR
Product Class
Ultimate

Documents

Approval document
Brochure
Reference document
Certificate
Operating Instruction
pdf ETA-20/0530_S-BT_2020.09.18_en, German, English [ 3.3 MB ]
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]

Features & Applications

Features

  • No rework necessary on coated steel – corrosion protection remains intact
  • For use in highly corrosive environments (C4 and C5) – suitable for most energy and industry applications
  • Suitable for use on steel with a thickness of 6 mm (1/4") and greater
  • Portable, cordless system eliminates the need for long electric supply cords
  • No propellant required

Applications

  • Fastening grating to steel structures using the X-FCM-R grating disc

For approval or certificate information, please see individual items.
