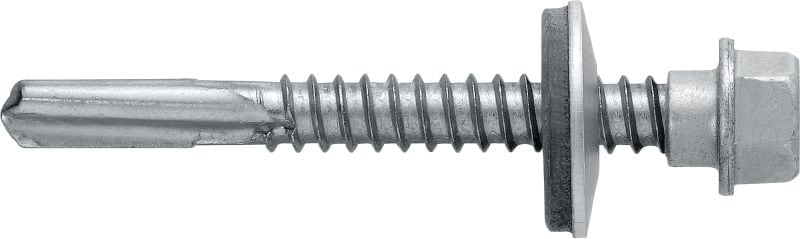

S-MD55SS Self-drilling metal screws

Configurator
Technical Data
Documents
Features & Applications
Related Products
Profile metal sheet fastening

Self-drilling screw (A4 stainless steel) with 16 mm washer for thick metal-to-metal fastenings (up to 15 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel, Aluminium
premium

Choose options

Base materials
  • Carbon steel, Aluminium
Corrosion protection
  • Stainless steel A4
Drilling capacity range DC
  • 4.6 - 15 mm
Thickness fastened range MF
  • 4.6 - 23 mm
  • 4.6 - 53 mm
Length
  • 52 mm
  • 82 mm
Pack size
  • 100 pc
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 476.00 ILS

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel, Aluminium
Drilling capacity - max
15 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Screw diameter d
5.5 mm
Drilling capacity DC - min
4.6 mm
Screw-head diameter
10 mm
Product Class
Premium
Washer type
Bonded EPDM

Documents

Approval document
Certificate
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_de, German [ 4.4 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to more reliably seal out water
  • Fast and robust drill tip for use on high-strength steel (up to grade S 450 GD) with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps to prevent point burn-out
  • For more reliable fastenings with defined load values
  • Attractive final appearance – screw head can be colored to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A4) for fastening in highly corrosive environments
  • Thick metal-to-metal connections (up to 15 mm)
  • For applications requiring watertight fastenings with 16 mm washer
  • Fastening aluminum façade systems

For approval or certificate information, please see individual items.
