S-AD01LHSS Self-drilling facade screws

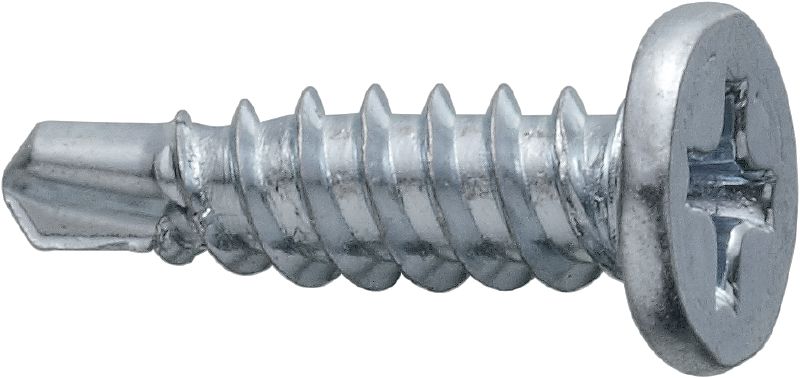

Self-drill screw S-AD01LHSS 4,8x17 #2127477
Self-drilling screw (A4 stainless steel) without washer for aluminium façade fastenings (up to 3 mm)
- Screw drive/recess type: PH #2
- Base materials: Carbon steel, Aluminium
- Drilling capacity - max: 4 mm
premium
Choose options
Drilling capacity range DC
- 0.75 - 4 mm
Length
- 17 mm
Screw drive/recess type
- PH #2
Pack size
- 500 pc
Quantity
Pack
Total Pieces
500
Discounted net
485.00 ILS
0.97 ILS / 1 each
Technical Data
Screw drive/recess type
PH #2
Base materials
Carbon steel, Aluminium
Drilling capacity - max
4 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Screw diameter d
4.8 mm
Length
17 mm
Drilling capacity DC - min
0.75 mm
Screw-head diameter
9 mm
Product Class
Premium
Washer type
None
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- Fast and robust drill tip
- For more reliable fastenings with defined load values
- Extra-low head geometry for assembly of composite aluminum façade panels
- Attractive final appearance – screw head can be colored to match the façade
Applications
- Fastening aluminum façade systems
- Stainless steel (A4) for fastening in highly corrosive environments
- Thin metal-to-metal connections (up to 3 mm)
- Assembling composite aluminum façade panels
- Fastening clamps on aluminum profiles
