S-CD 65 GS Sandwich panel screws

Configurator
Technical Data
Documents
Features & Applications
Related Products
L081555.tif

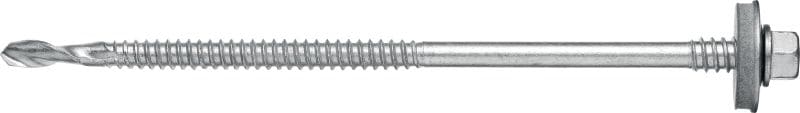

Sandwich panel screw (A2 stainless steel) with 19 mm washer and supporting thread for thick steel base structures (up to 15 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 19 mm
  • Base materials: Carbon steel

Choose options

Base materials
  • Carbon steel
Corrosion protection
  • Stainless steel A2
Drilling capacity range DC
  • 4 - 15 mm
Thickness fastened range MF
  • 55 - 86 mm
  • 75 - 106 mm
  • 95 - 126 mm
  • 115 - 141 mm
  • 130 - 156 mm
Length
  • 128 mm
  • 148 mm
  • 168 mm
  • 183 mm
  • 198 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 1,295.00 ILS

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
19 mm
Base materials
Carbon steel
Drilling capacity - max
15 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
5.5 mm
Drilling capacity DC - min
4 mm
Screw-head diameter
10 mm
Washer type
Bonded EPDM

Documents

Reference document
Technical information
Operating Instruction
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Reliable, waterproof and corrosion-resistant fastenings
  • EPDM rubber washer – creates a more reliable seal against water
  • Innovative twisted drill tip for fast drilling speed and high robustness
  • Supporting thread helps to fasten without dents

Applications

  • Fastening sandwich panels to steel framing
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Thick metal-to-metal connections (up to 15 mm)
  • Watertight fastenings – 19 mm washer included
  • Fastening sandwich panels to steel beams

For approval or certificate information, please see individual items.
