S-MD 21 Z Self-drilling metal screws

Self-drilling screw S-MD21Z 5 #234588

Configurator
Technical Data
Documents
Features & Applications
Related Products

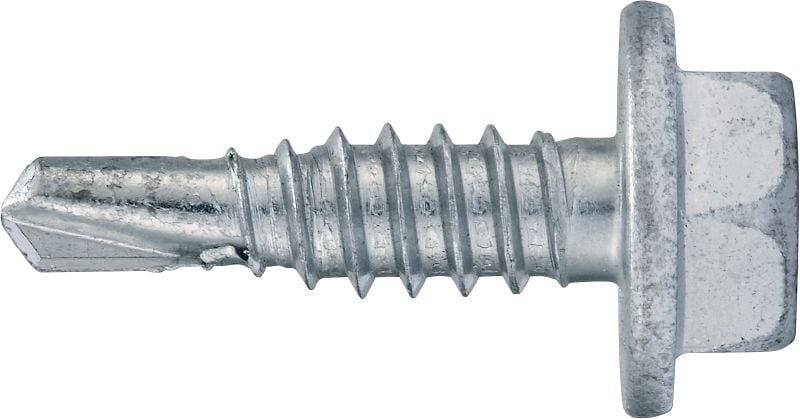

S-MD21Z 5,5x25 self-drilling tip 1 screw

Self-drilling screw (zinc-plated carbon steel) with pressed-on flange for thin metal-to-metal fastenings (up to 3 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 15 mm
  • Base materials: Carbon steel
premium

Choose options

Base materials
  • Carbon steel
Corrosion protection
  • Galvanized zinc plated
Drilling capacity range DC
  • 1.2 - 3 mm
Thickness fastened range MF
  • 1.2 - 15 mm
Length
  • 25 mm
Pack size
  • 500 pc
 Product options
Quantity
Pack
Total Pieces
500
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
257.00 ILS
0.51 ILS
/
1 each

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
15 mm
Base materials
Carbon steel
Drilling capacity - max
3 mm
Environmental Conditions
Dry indoor
Screw diameter d
5.5 mm
Length
25 mm
Drilling capacity DC - min
1.2 mm
Screw-head diameter
10 mm
Product Class
Premium
Washer type
Pressed-on

Documents

Reference document
Technical information
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • EPDM rubber washer – creates a more reliable seal against water
  • Fast and robust drill tip
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be colored to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanized carbon steel for fastening in dry, indoor environments
  • Thin metal-to-metal connections (up to 3 mm)
  • Especially suitable for cassette system walls on HTU cast-in channels, C/U profiles etc.
